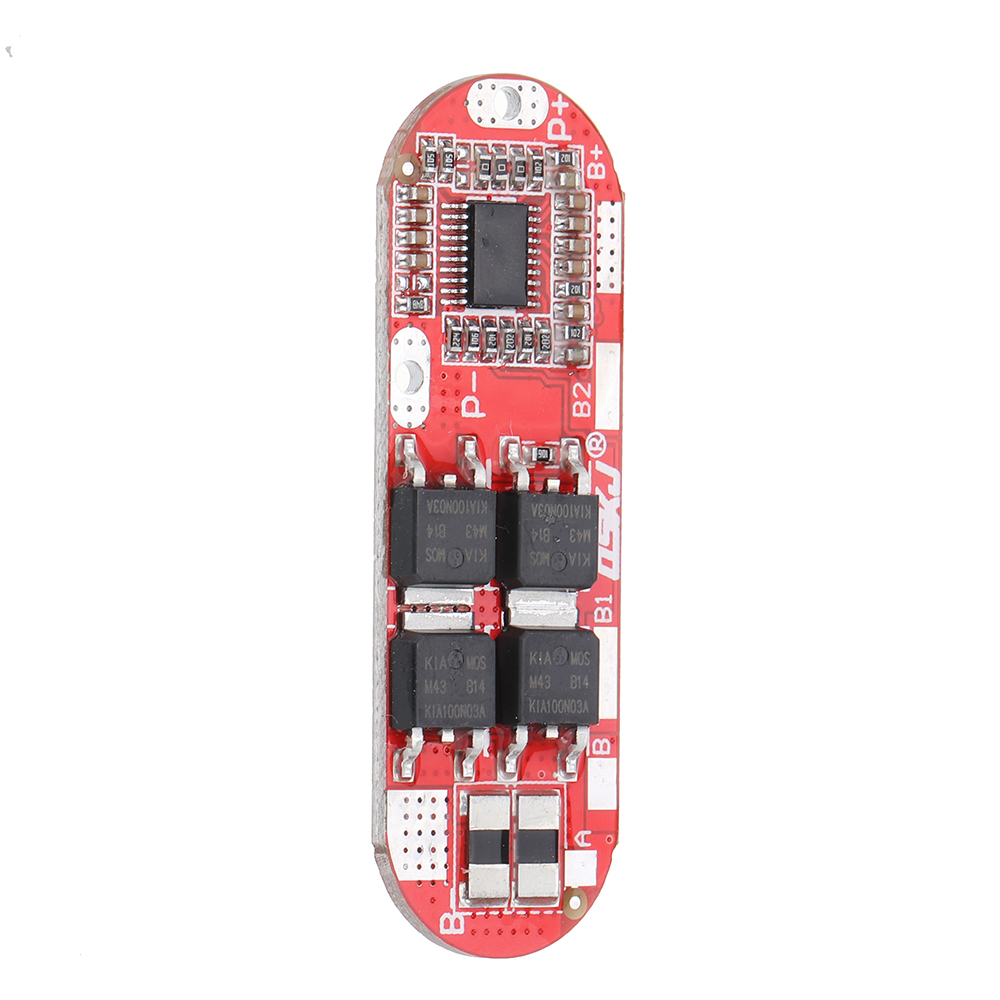

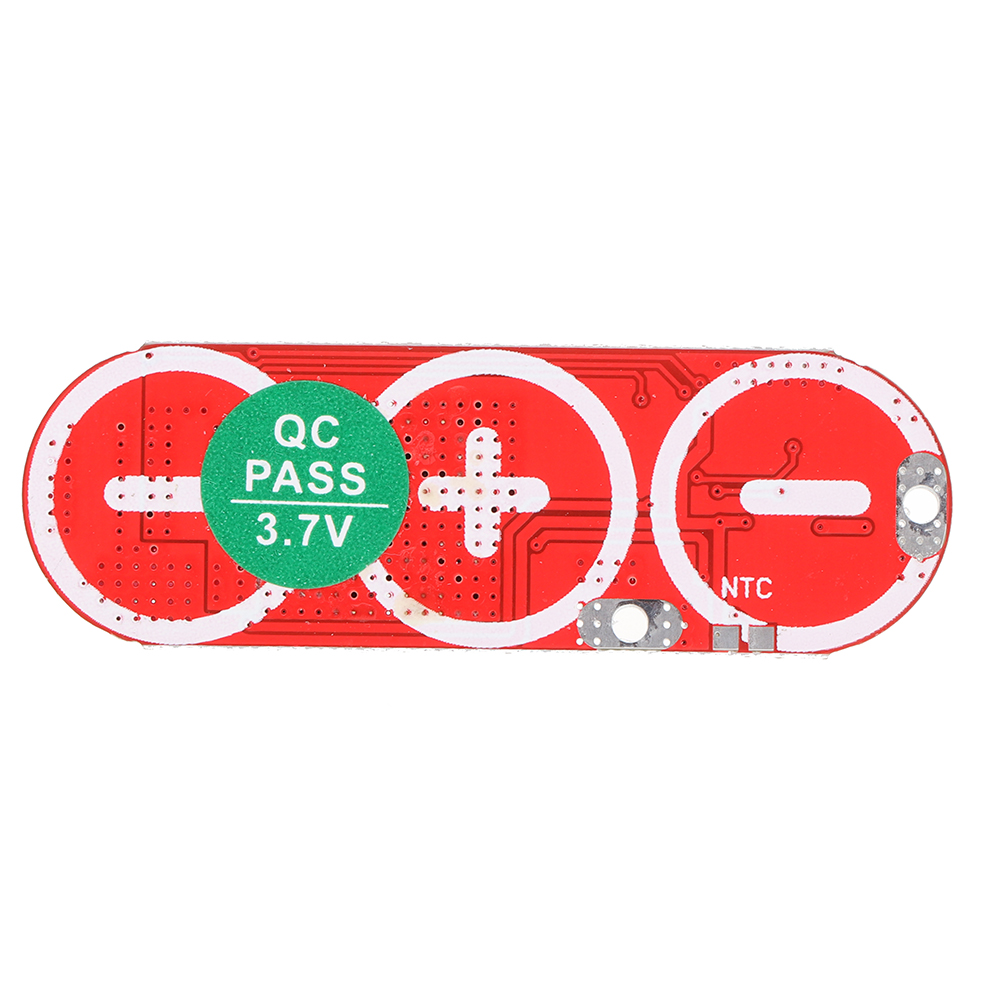

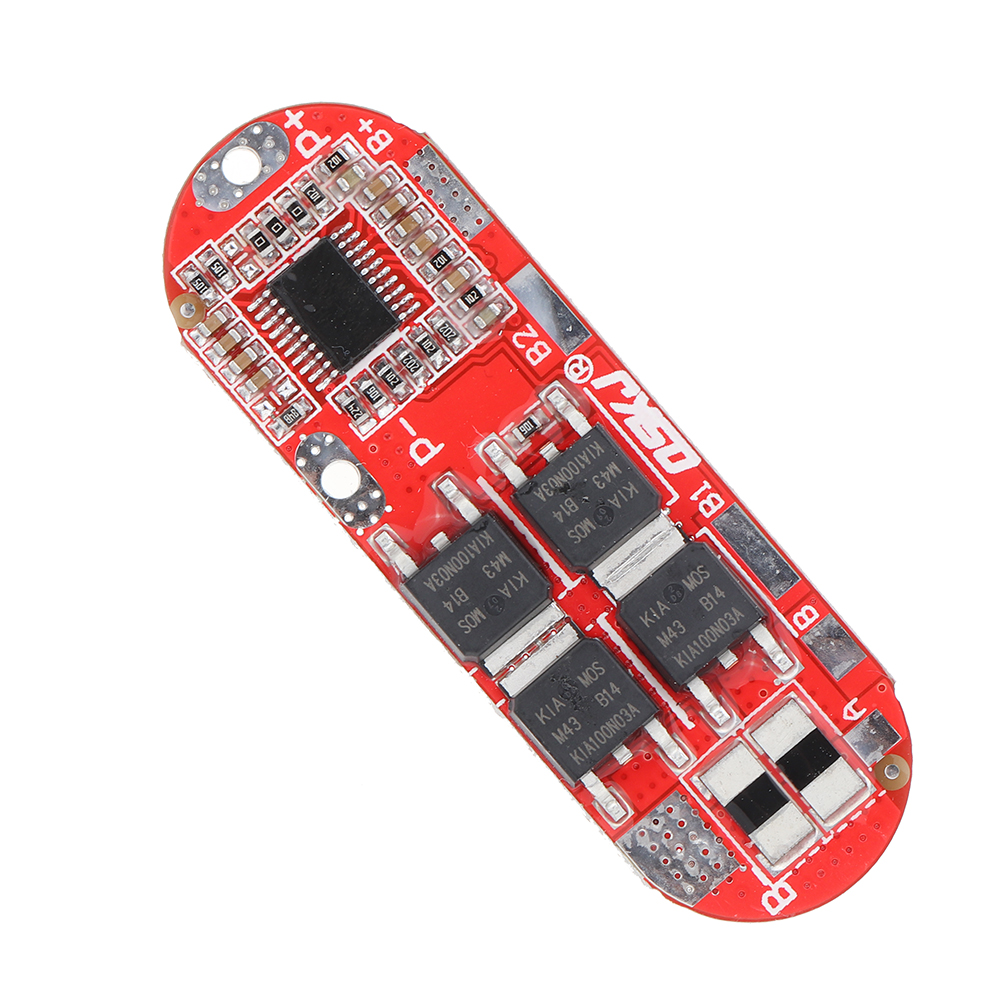

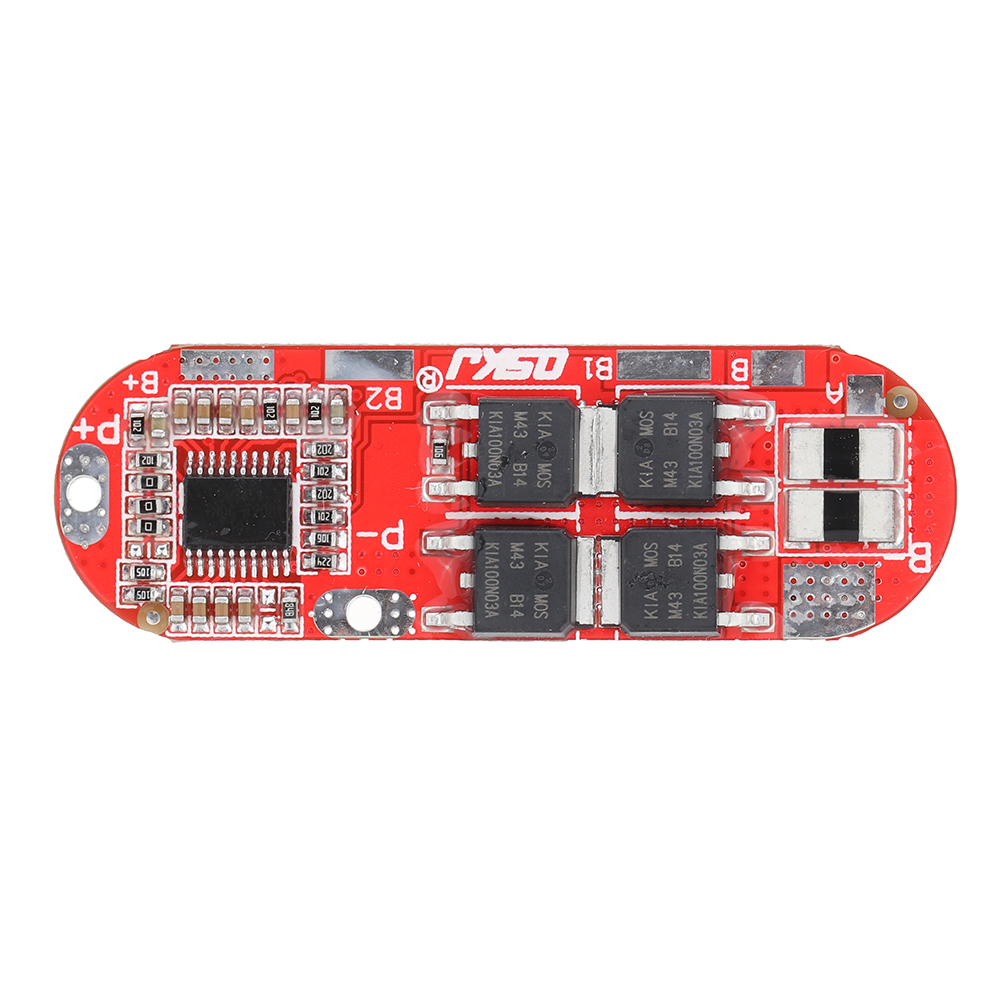

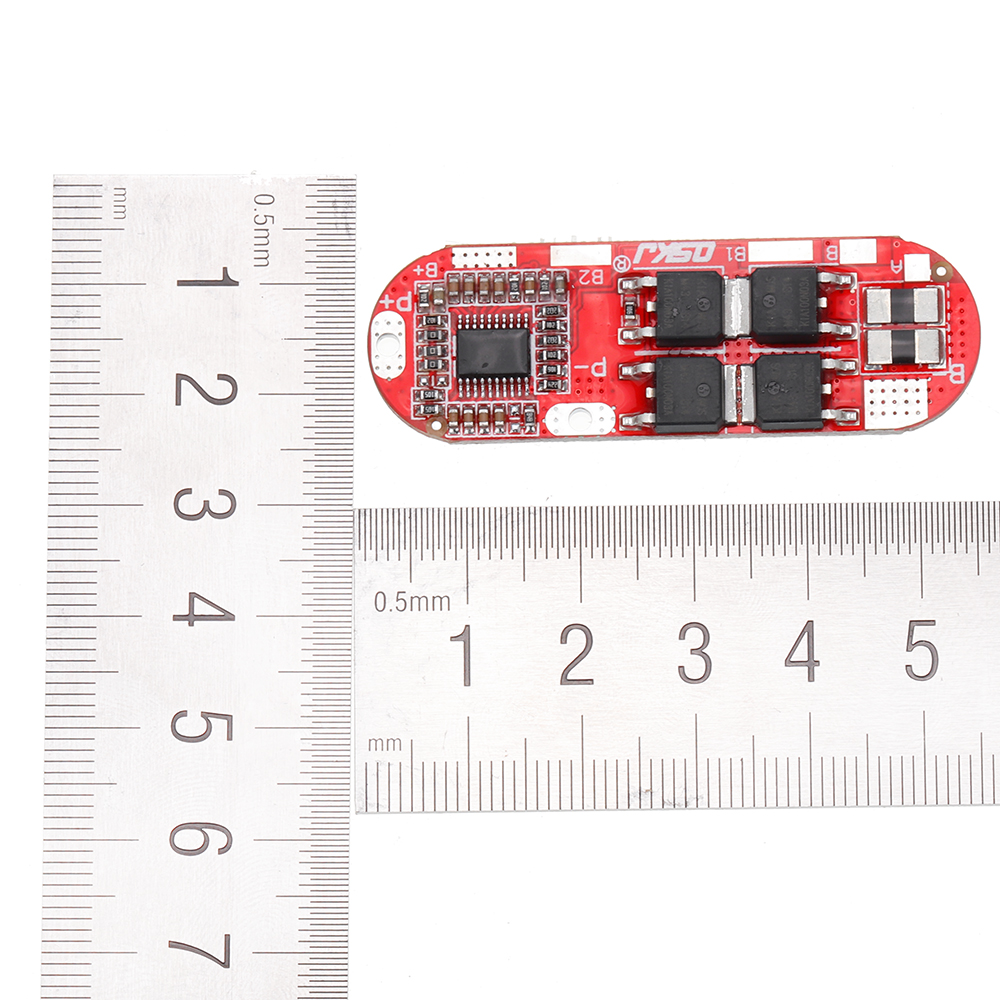

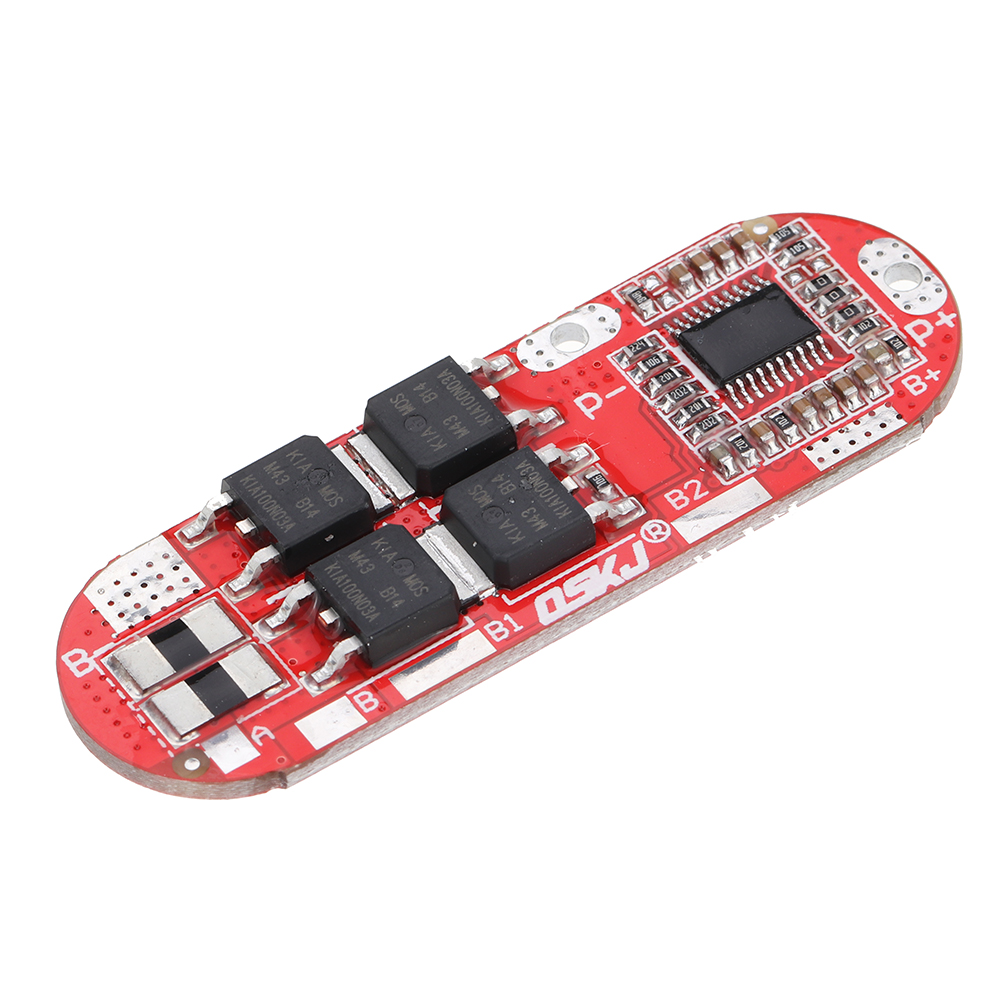

10pcs 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board Circuit Charging Module PCM Polymer Lipo Cell PCB

10pcs 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board Circuit Charging Module PCM Polymer Lipo Cell PCB
10pcs 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board Circuit Charging Module PCM Polymer Lipo Cell PCB
10pcs 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board Circuit Charging Module PCM Polymer Lipo Cell PCB
10pcs 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board Circuit Charging Module PCM Polymer Lipo Cell PCB
10pcs 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board Circuit Charging Module PCM Polymer Lipo Cell PCB
10pcs 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board Circuit Charging Module PCM Polymer Lipo Cell PCB
10pcs 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board Circuit Charging Module PCM Polymer Lipo Cell PCB
10pcs 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board Circuit Charging Module PCM Polymer Lipo Cell PCB
10pcs 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board Circuit Charging Module PCM Polymer Lipo Cell PCB
10pcs 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board Circuit Charging Module PCM Polymer Lipo Cell PCB
10pcs 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board Circuit Charging Module PCM Polymer Lipo Cell PCB
10pcs 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board Circuit Charging Module PCM Polymer Lipo Cell PCB
10pcs 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board Circuit Charging Module PCM Polymer Lipo Cell PCB
  • Stock: In Stock
  • Model: ST230045823
  • SKU: ST230045823
$26.99
Ex Tax: $26.99
Specifications:

Single Cell overcharge protect voltage:  4.23 - 4.28V
Single Cell overcharge rotect recover voltage:  4.08 - 4.18
Overcharge protect delay:  0.5 - 1.5S
Single Cell over-discharge protect voltage:   2.72 - 2.88V
Single Cell over-discharge rotect recover voltage:   2.9 - 3.1V
Overcharge protect current:  60A
Over-discharge protect current: 60A
Over-discharge protectdelay: 0.5 - 1.5S
Temperature protect: YES
Disconnect protect: YES
Shortage protect: YES
Shortage delay: 100 - 600μS
Shortage protect recover: YES
Charging current:  25A
Discharging current: 25A
Charging voltage : 12.6V for 3S BMS board
                                16.8V for 4S BMS board
                                21V for 5S BMS board

Package Included:

10 x 3S BMS 25A 12.6V 4S 16.8V 5S 21V 18650 Li-ion Lithium Battery Protection Board




10pcs-3S-BMS-25A-126V-4S-168V-5S-21V-18650-Li-ion-Lithium-Battery-Protection-Board-Circuit-Charging--1542683-1

10pcs-3S-BMS-25A-126V-4S-168V-5S-21V-18650-Li-ion-Lithium-Battery-Protection-Board-Circuit-Charging--1542683-2

10pcs-3S-BMS-25A-126V-4S-168V-5S-21V-18650-Li-ion-Lithium-Battery-Protection-Board-Circuit-Charging--1542683-3

10pcs-3S-BMS-25A-126V-4S-168V-5S-21V-18650-Li-ion-Lithium-Battery-Protection-Board-Circuit-Charging--1542683-4

10pcs-3S-BMS-25A-126V-4S-168V-5S-21V-18650-Li-ion-Lithium-Battery-Protection-Board-Circuit-Charging--1542683-5

10pcs-3S-BMS-25A-126V-4S-168V-5S-21V-18650-Li-ion-Lithium-Battery-Protection-Board-Circuit-Charging--1542683-6
