Motor Disassembly Safety & Product Disclaimer Notice

1. Safety Warning: Cut off all power supply before replacing carbon brushes; stop operation immediately if abnormal spark or overheating occurs.
2. Disclaimer: This graphite carbon brush bulk pack is aftermarket motor spare part, not original component of any power tool brand.

Product Overview

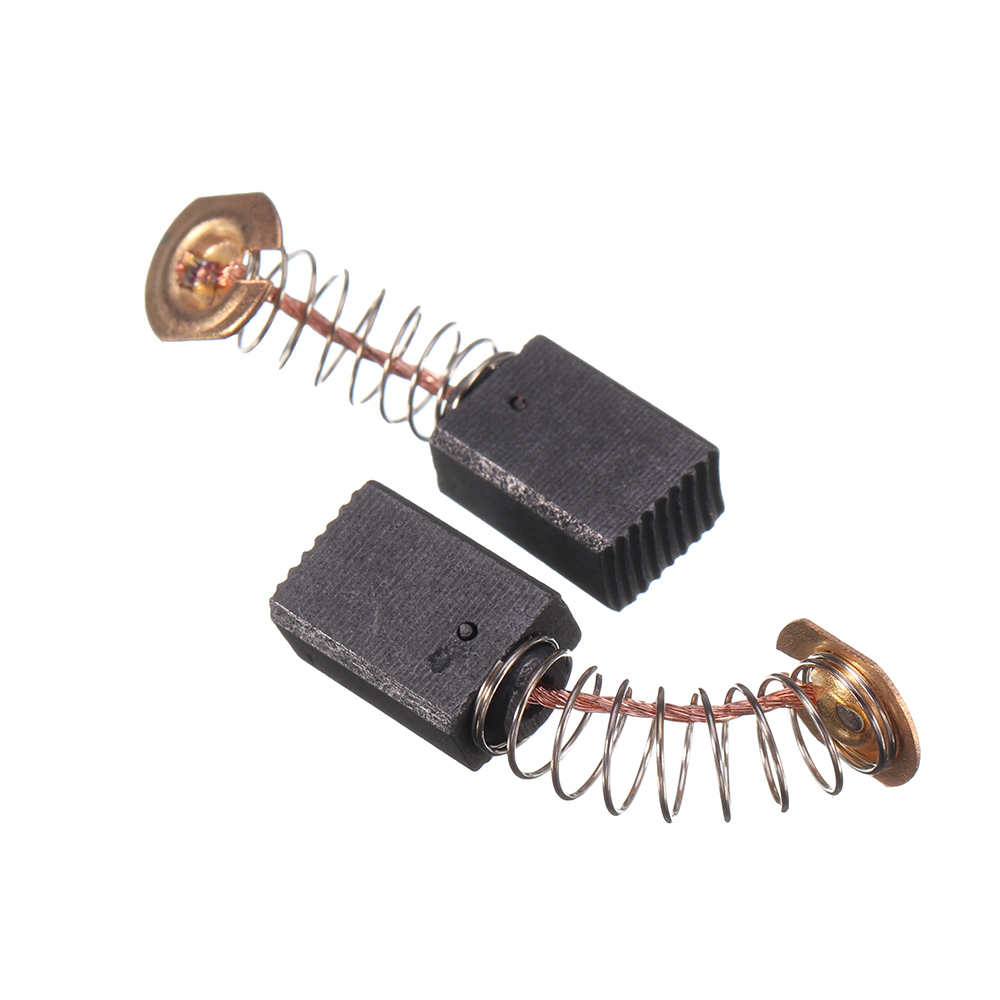

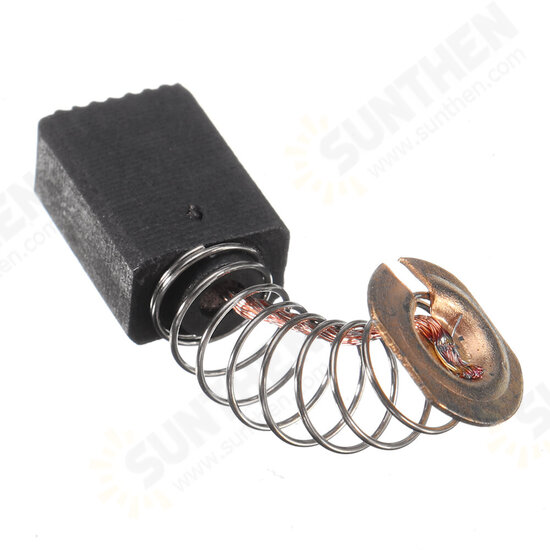

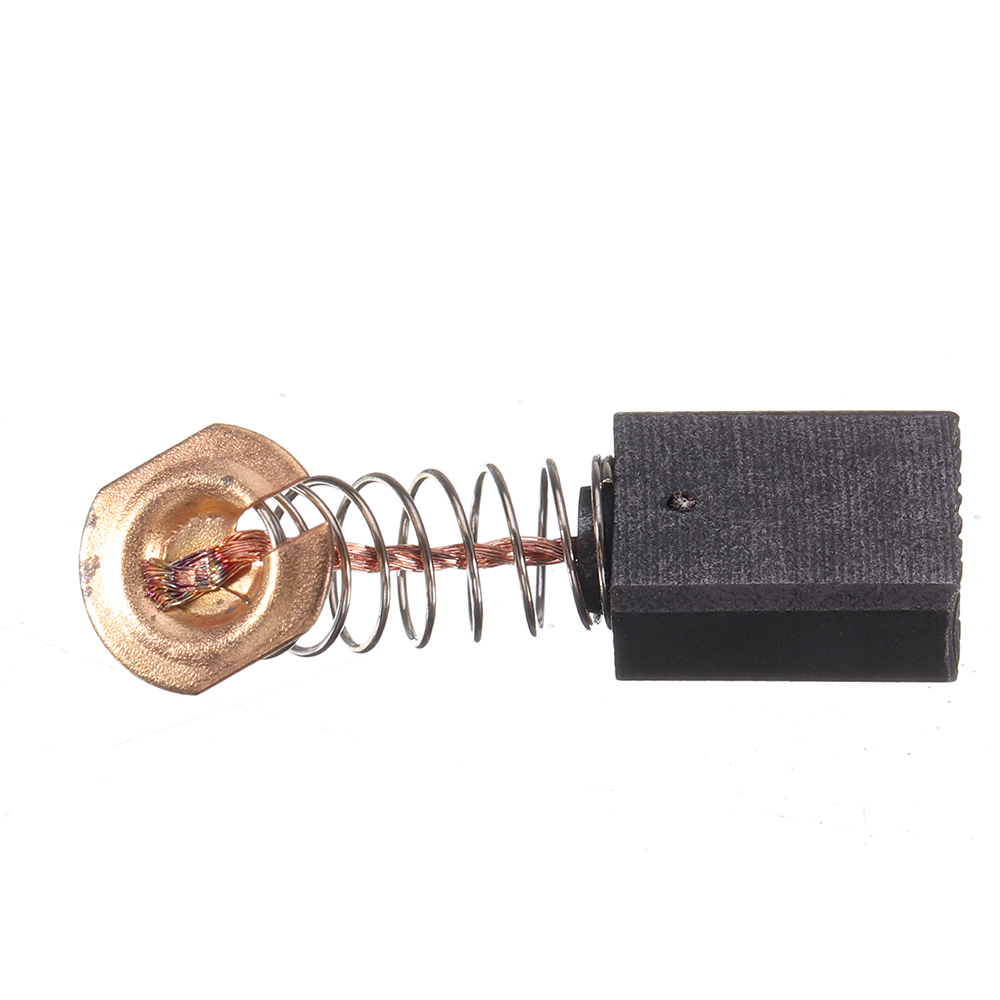

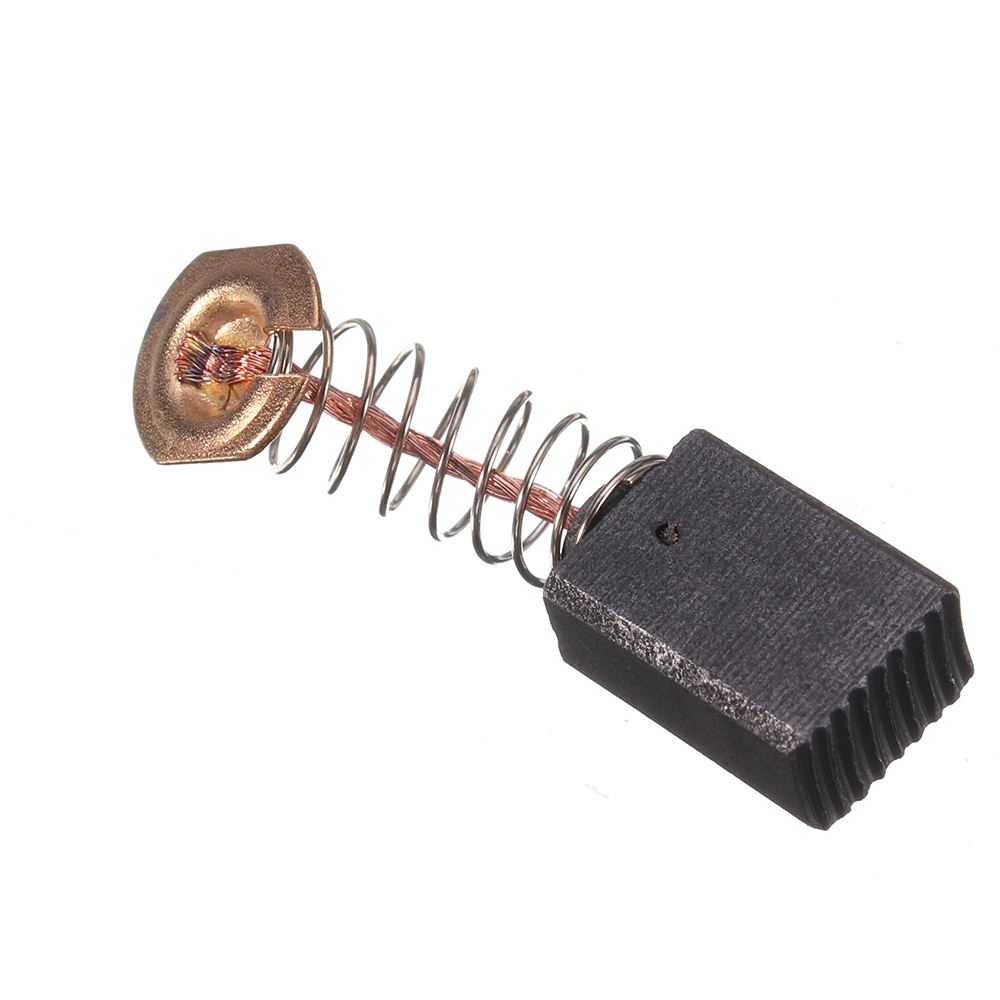

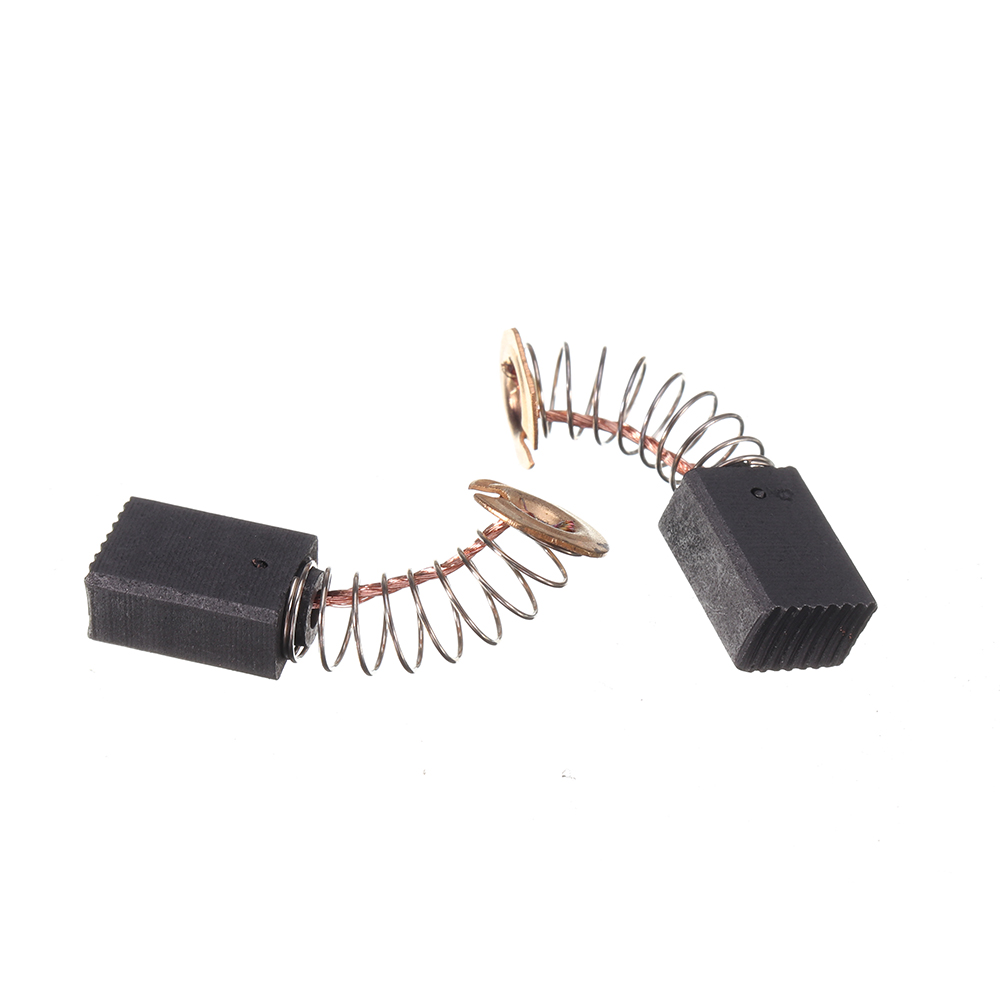

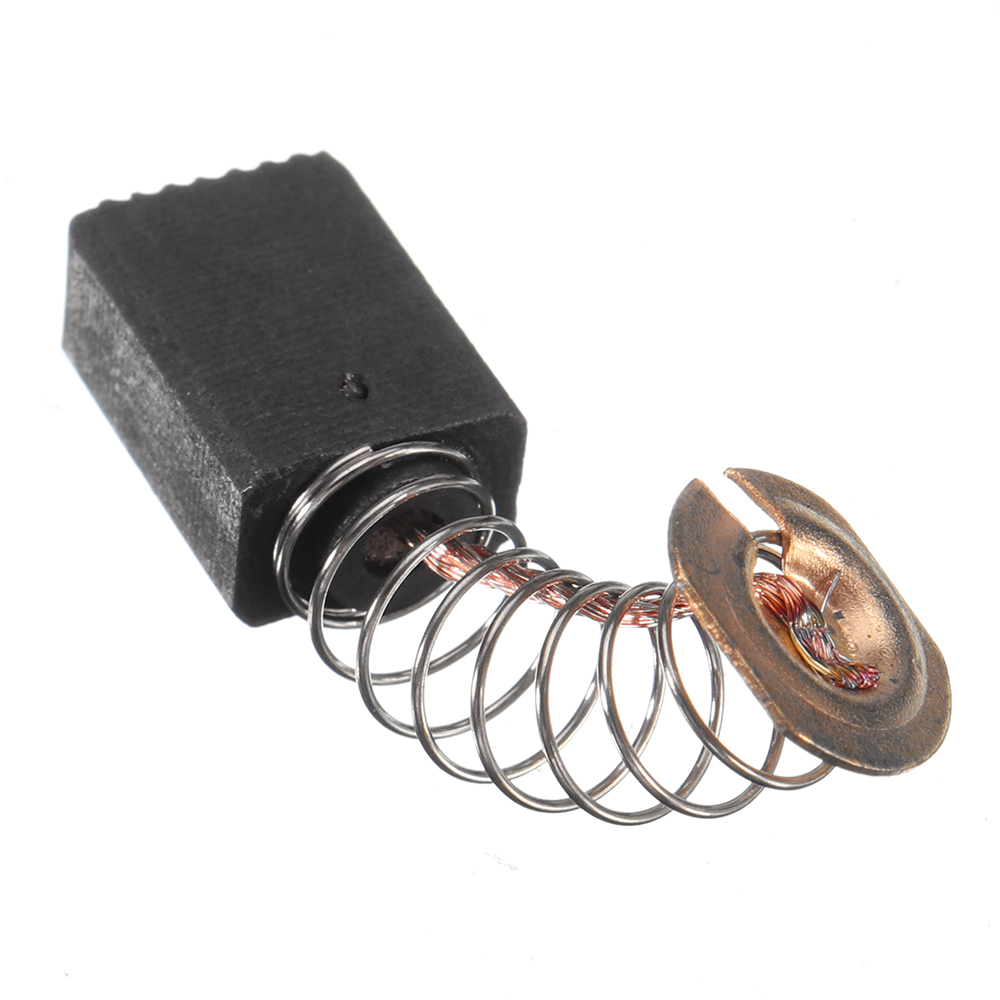

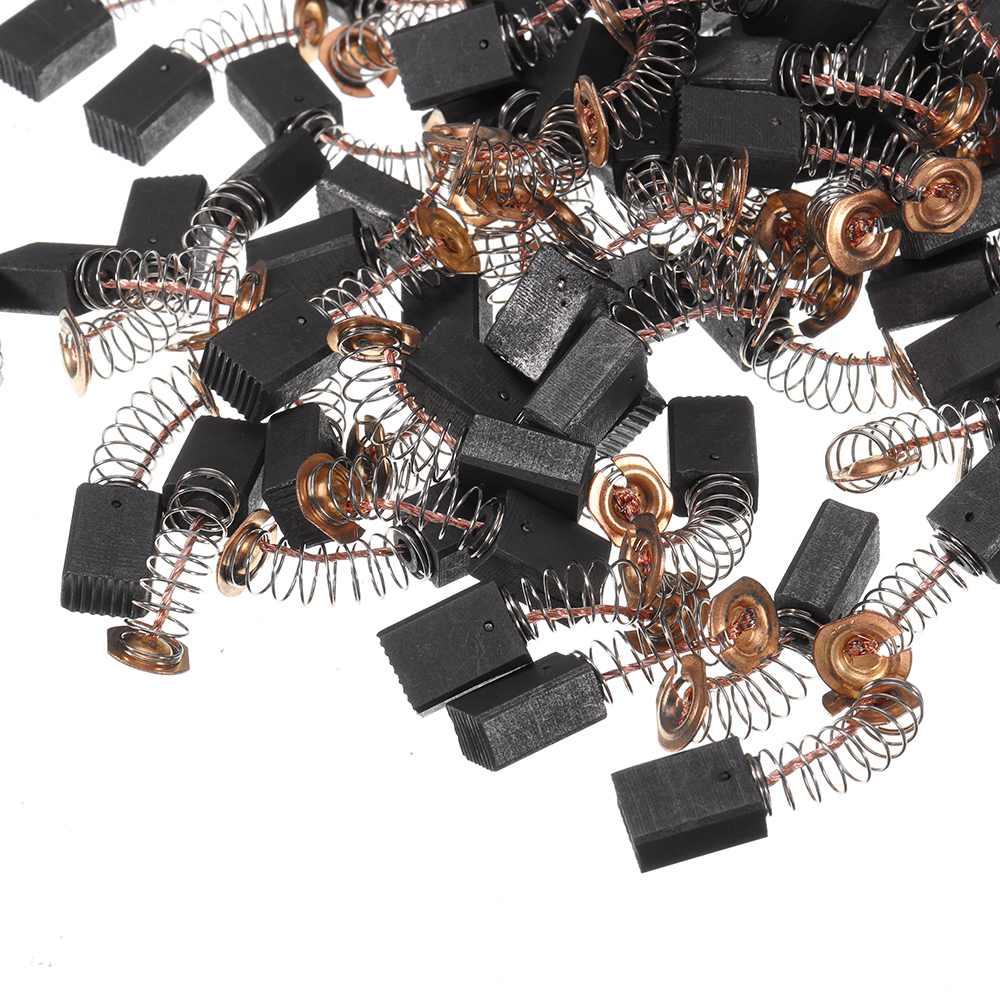

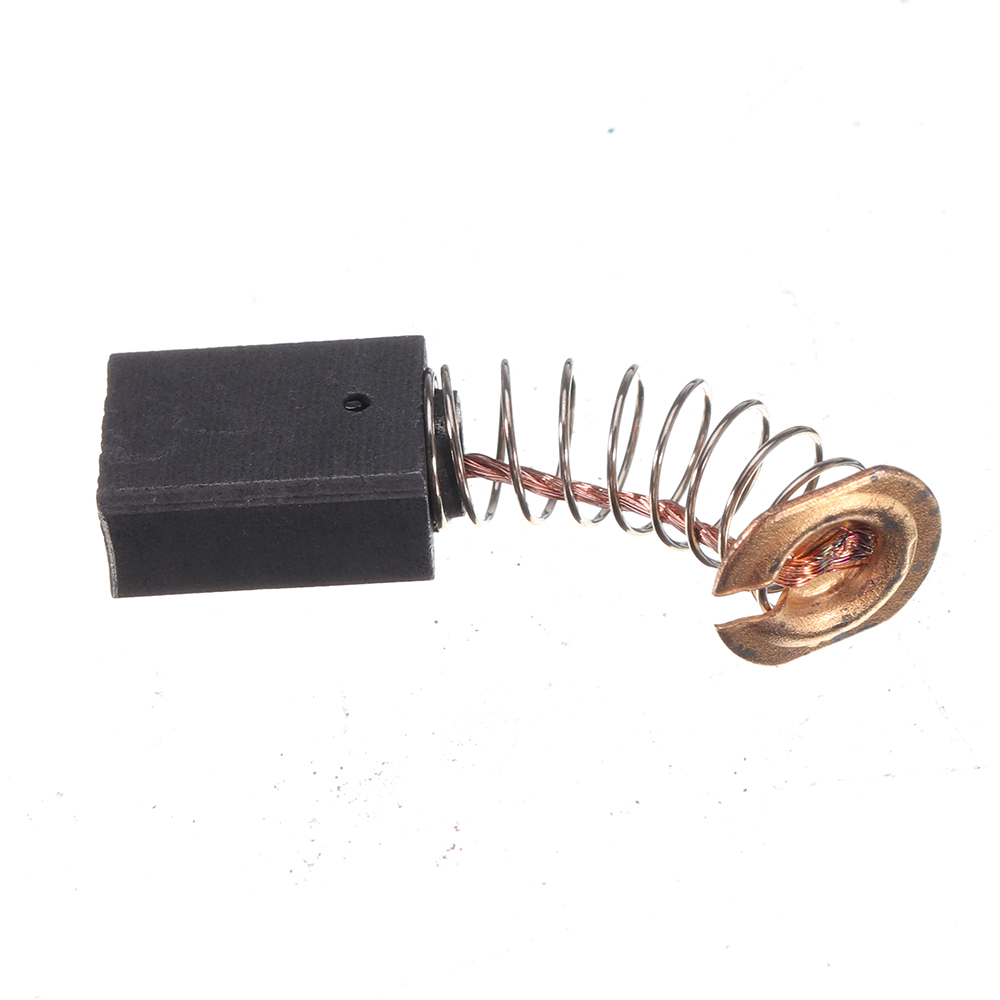

Bulk pack of 100pcs bilateral auto-stop graphite carbon brushes, unified dimension 6×14×17mm. Both sides equipped safety limit contact, when graphite wears thin the circuit will automatically cut off power to protect motor rotor from scratch damage. High-density solid graphite block with tightly crimped copper braided wire, low spark, wear-resistant performance. Standard inner cavity size fits circular saw, profile cutter, miter saw, stone cutting machine, electric chain saw and all types cutting equipment motors, ideal long-term bulk inventory for repair workshops.

Core Key Advantages

• 100pcs large bulk pack for workshop long maintenance backup
• Bilateral dual-side auto power-off protection, double motor safety
• High density graphite block extends service life & stable conduction
• Tightly woven copper wire, anti-breakage under vibration cutting work
• Universal 6×14×17mm size matches most cutting machine motors
• Simple DIY disassembly & replacement without special tools

Full Technical Specifications

Universal Compatibility Description

This bilateral self-stop carbon brush set fits all wood & metal cutting power tools whose motor brush slot matches 6×14×17mm internal dimension.

Self-Stop Working Principle

Two safety limiting contacts are installed on both sides of each carbon brush. When graphite wears down to the threshold position, the circuit disconnects automatically, avoiding direct friction between copper wire and motor rotor to extend motor service life.

Installation Operation Steps

1. Completely disconnect power before opening motor housing cover.
2. Take out worn old brushes and clean internal carbon dust.
3. Install new bilateral self-stop brushes without squeezing copper wire.
4. Reassemble shell and test cutting machine normal operation.

Package Contents

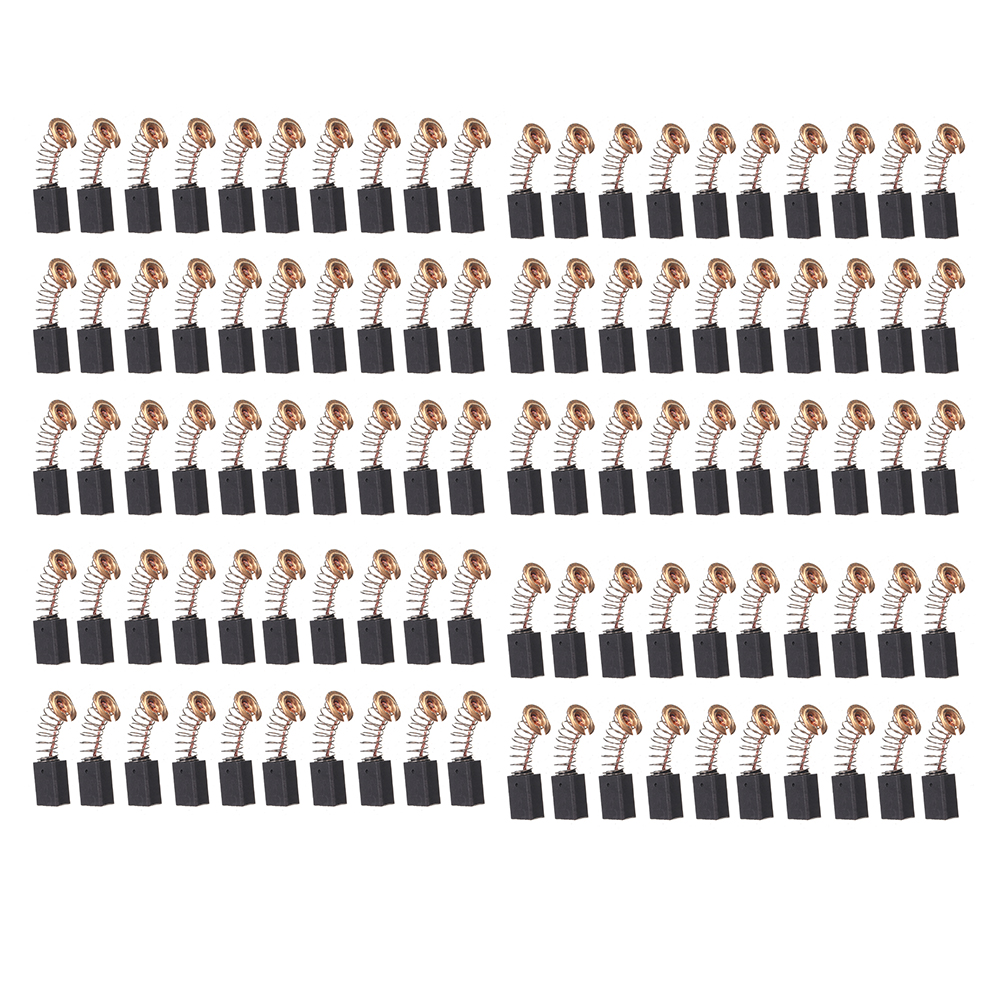

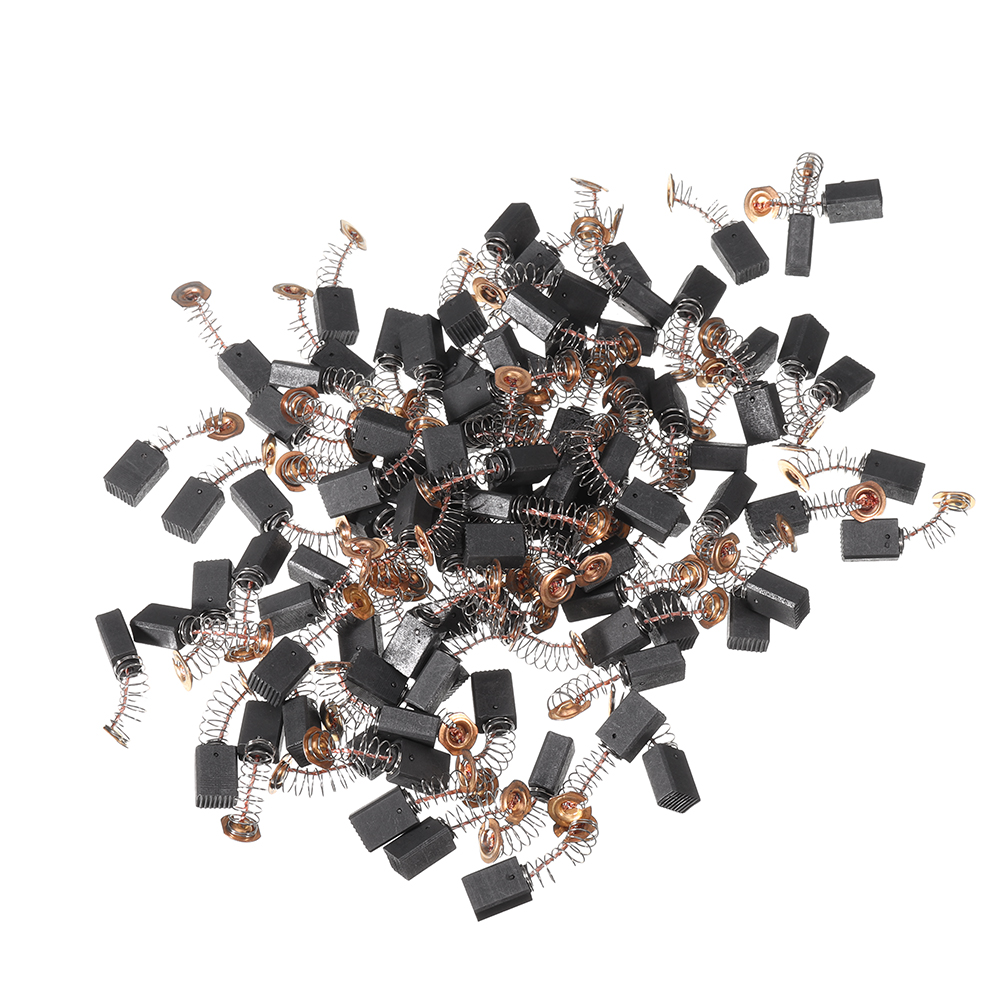

• 100 × Bilateral Auto-Stop Graphite Carbon Brushes
• Multilingual Motor Maintenance Safety Instruction Card

Frequently Asked Questions

Q1 What’s the size of this carbon brush?

A1 Standard overall dimension: 6mm width ×14mm thickness ×17mm length.

Q2 How many brushes are included in one pack?

A1 Each package contains 100pcs full set bilateral self-stop carbon brushes.

Q3 What’s the difference with unilateral carbon brush?

A1 This model has self-stop safety contact on both sides for double motor protection.

Q4 Is this original brand power tool spare part?

A1 This universal aftermarket bulk carbon brush pack, not factory original motor component.
