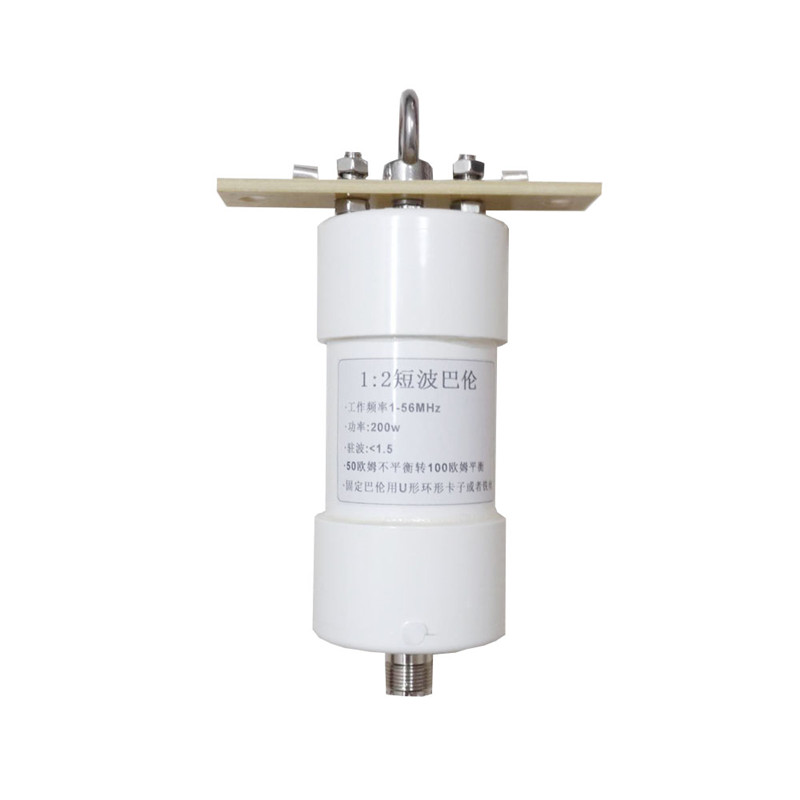

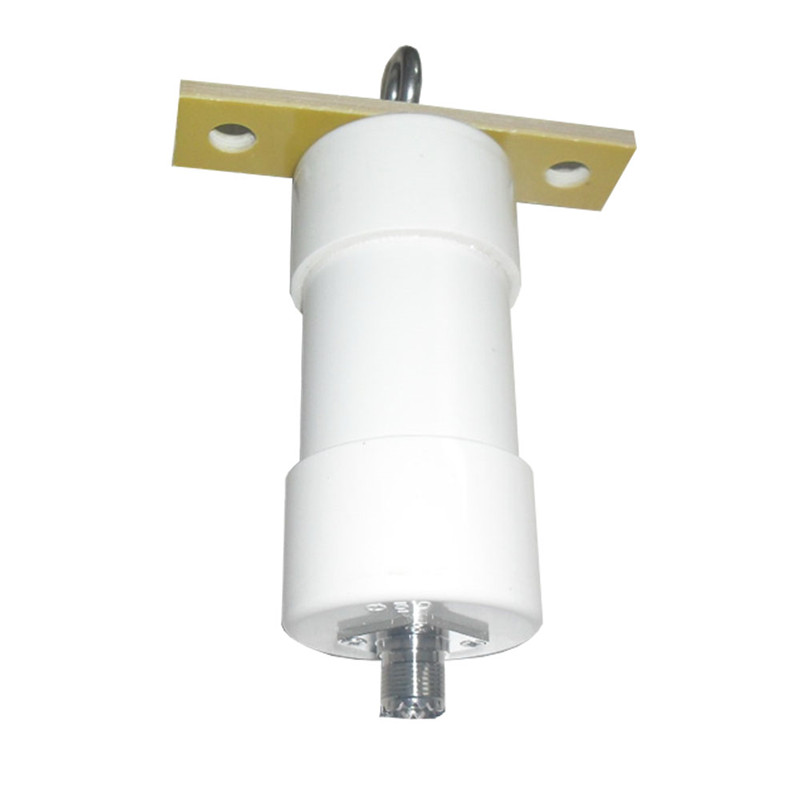

1:2 1-56MHz 200W Balun HAM Shortwave Antenna Balun 50 ohm to 100 ohm Unbalanced Balance
- Stock: In Stock
- Model: ST230047863
- SKU: ST230047863
$23.09
Ex Tax: $23.09
The main parameters:
1. The transformation ratio is 1:2
2. Input impedance: 50 ohms (unbalanced)
3. Output impedance: 100 ohms (balance) suitable for QUAD ANT antenna
4. Frequency range: 1-56MHz
5. Standing wave: less than 1.5
6. Power resistance: 500w
7. Dimensions: outer diameter 50x130mm
8. Weight: 350 grams

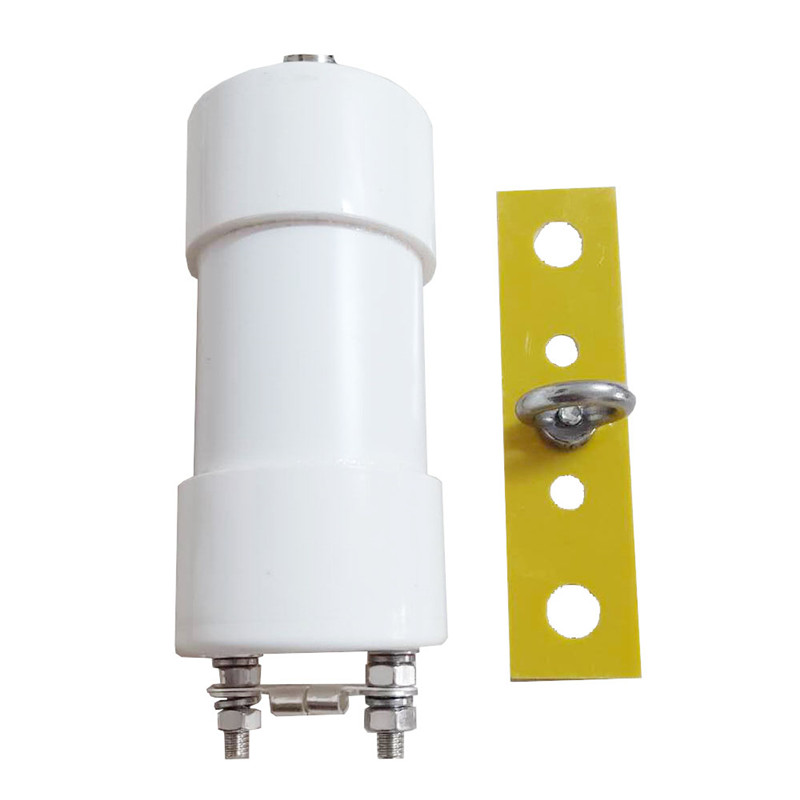

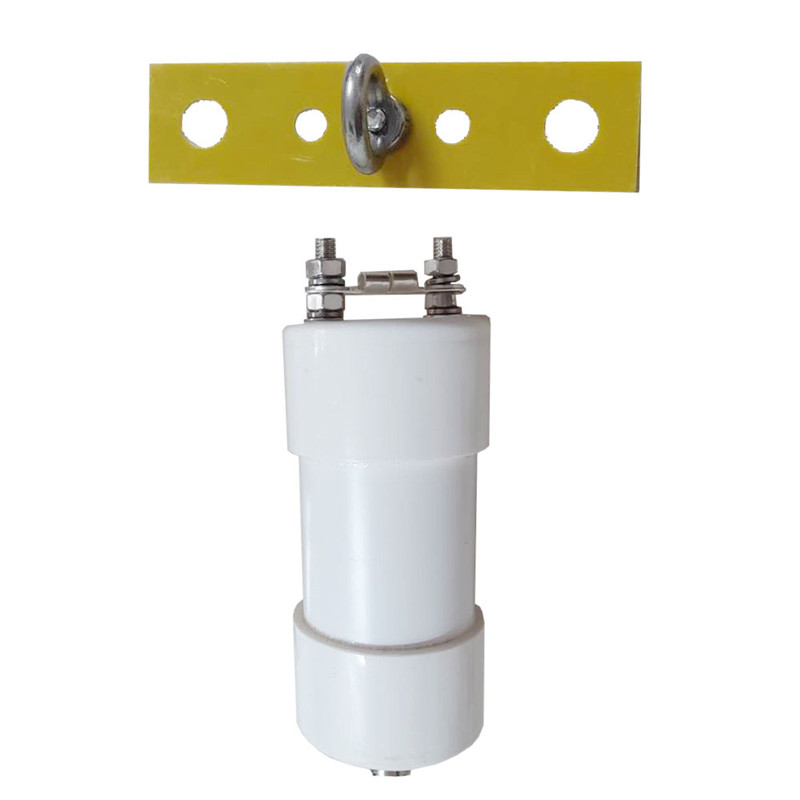

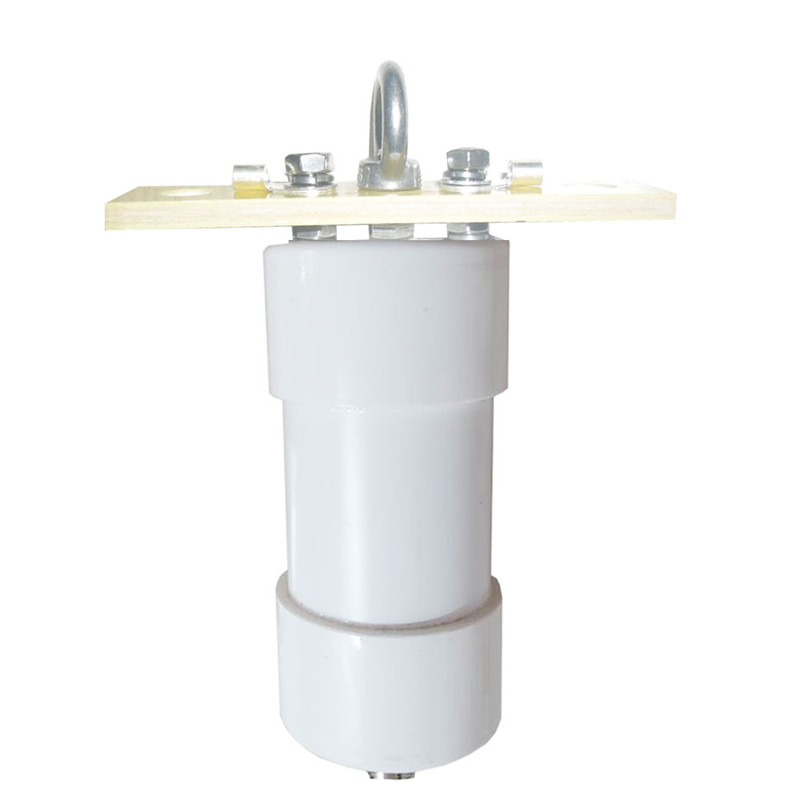

9. Comes with epoxy resin plate and 304 stainless steel lifting ring, with two copper noses for connecting the vibrator, convenient for users.
10. Barron is already waterproof, and users only need to waterproof between the M seat and the cable connector.
Package includes:
1 x 1:2 Balun
