024A-100A Circular LCD AC Digital Ammeter AC 0~100A AC Current Tester Open and Close Type/ Closed Type Optional

024A-100A Circular LCD AC Digital Ammeter AC 0~100A AC Current Tester Open and Close Type/ Closed Type Optional
024A-100A Circular LCD AC Digital Ammeter AC 0~100A AC Current Tester Open and Close Type/ Closed Type Optional
024A-100A Circular LCD AC Digital Ammeter AC 0~100A AC Current Tester Open and Close Type/ Closed Type Optional
024A-100A Circular LCD AC Digital Ammeter AC 0~100A AC Current Tester Open and Close Type/ Closed Type Optional
024A-100A Circular LCD AC Digital Ammeter AC 0~100A AC Current Tester Open and Close Type/ Closed Type Optional
024A-100A Circular LCD AC Digital Ammeter AC 0~100A AC Current Tester Open and Close Type/ Closed Type Optional
024A-100A Circular LCD AC Digital Ammeter AC 0~100A AC Current Tester Open and Close Type/ Closed Type Optional
024A-100A Circular LCD AC Digital Ammeter AC 0~100A AC Current Tester Open and Close Type/ Closed Type Optional
024A-100A Circular LCD AC Digital Ammeter AC 0~100A AC Current Tester Open and Close Type/ Closed Type Optional
  • Stock: In Stock
  • Model: ST22011828
  • SKU: ST22011828
$15.99
Ex Tax: $15.99

Available Options

Features:


  • Backlight control, you can turn off or turn on the backlight by short pressing the button
  • Separate wiring terminals independently, simple wiring, no mutual interference
  • No screw elastic connection, tightly pressed, no damage to the LCD
  • Strong and weak current circuit board, strong anti-interference

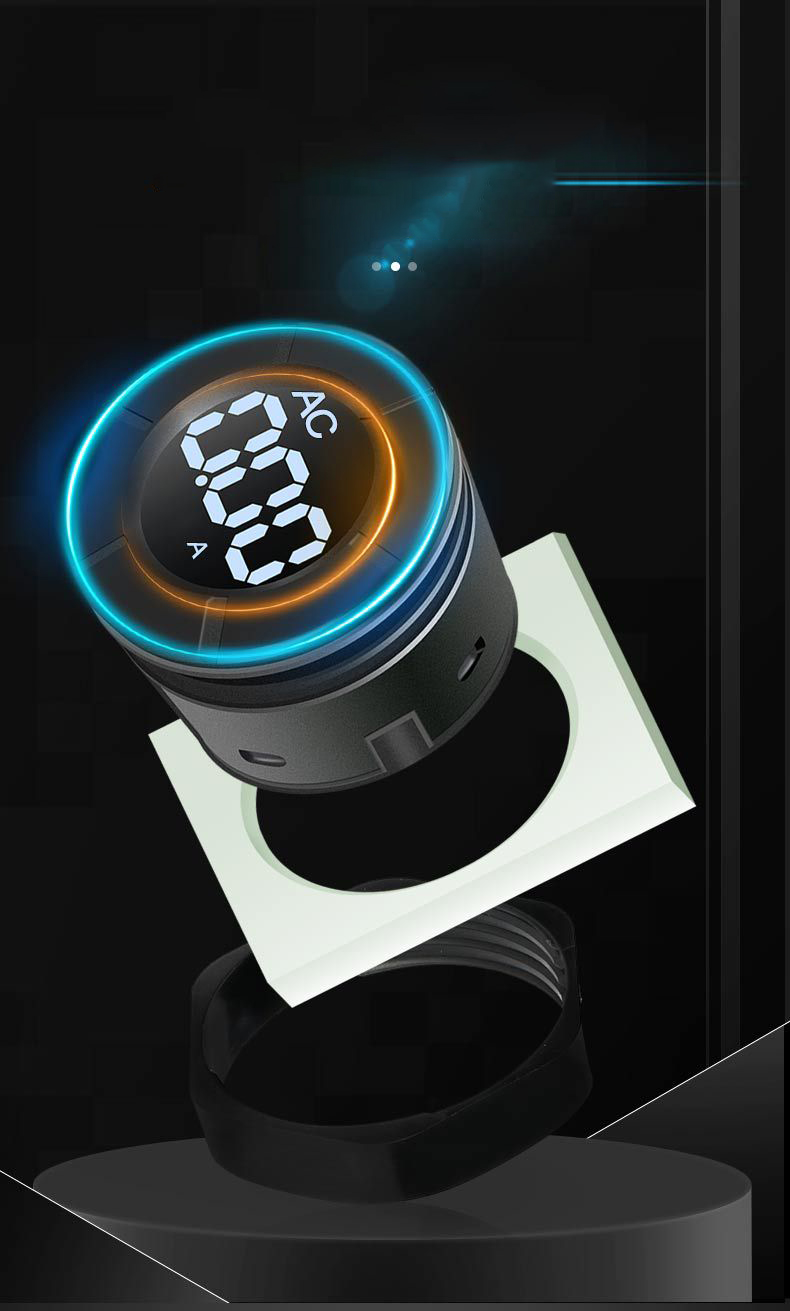

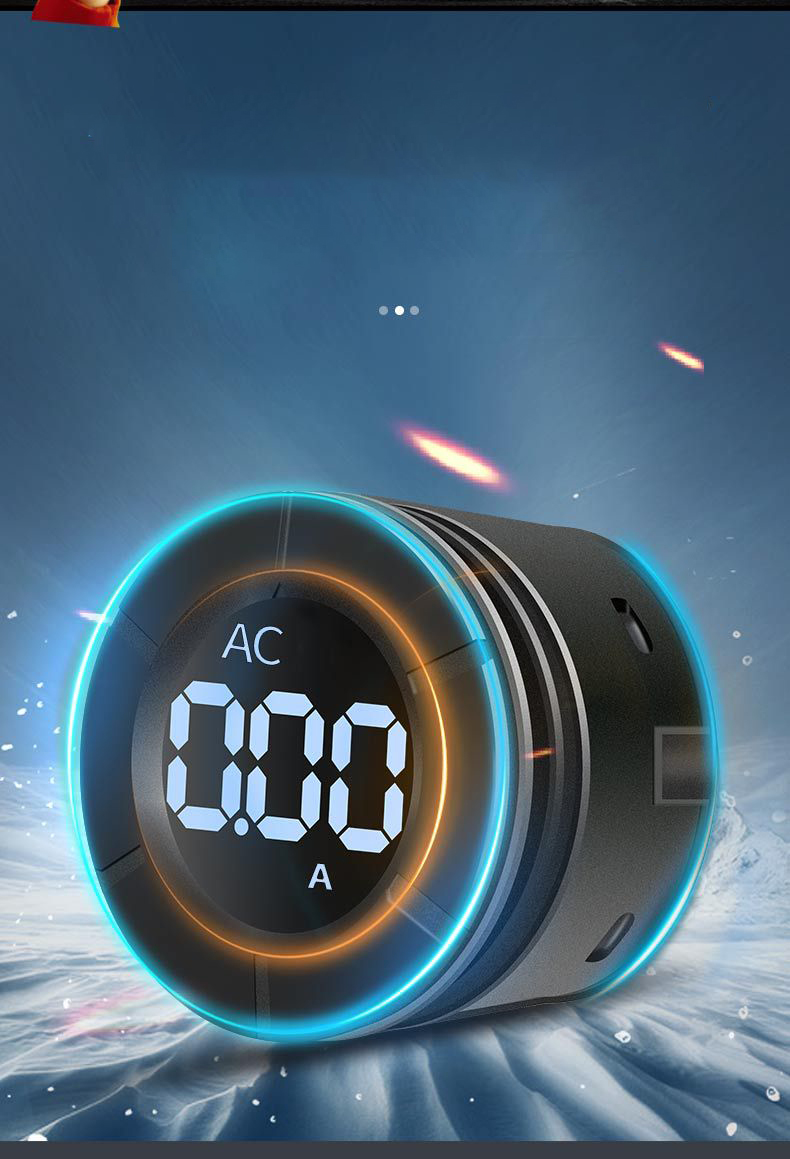

  • Round high-end VA LCD screen

Specification:


  • Operating Voltage: AC 30~500V

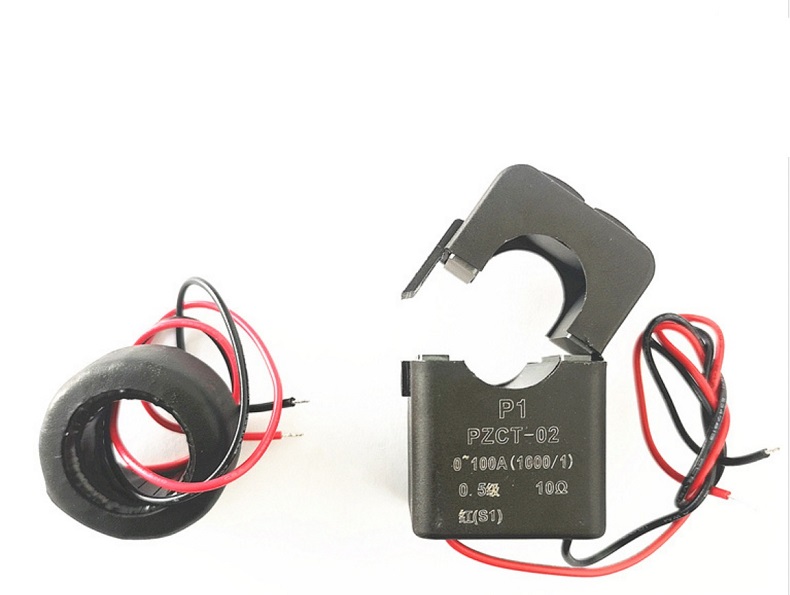

  • Measuring range: 0.1~100A (external CT)
  • Accuracy: ±1%

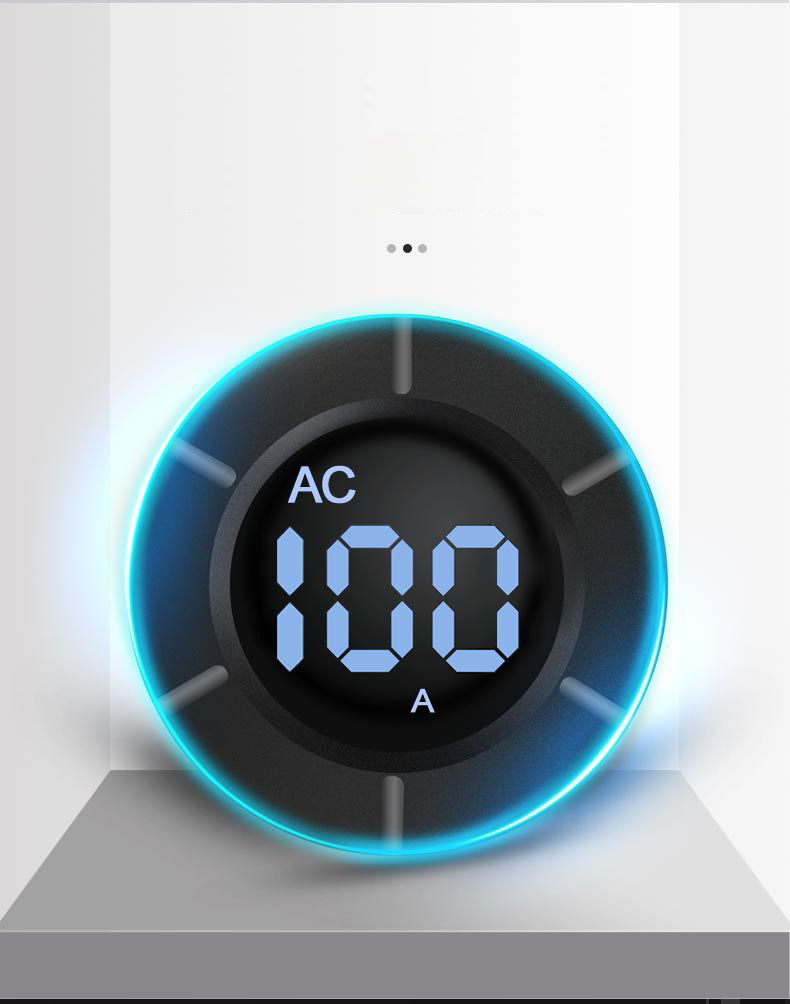

  • Display format:

                               <10A: 9.99A

                               <100A: 99.9A

                               ≥100A: 100A


Error adjustment

step 1:

Long press the button (about 3 seconds) until the digital digit on the screen flashes, then release the button;

Step 2:

The digital flashing means entering the error adjustment state, and the digits flashing cyclically, as follows:

Digital low...digital middle...digital high...decimal point, flashing means current

Adjustable digits, short press the button to adjust the value (digit 0-9 cycle, decimal

Point shift);

Step 3:

After the adjustment is complete, press and hold the button (about 3 seconds), the screen displays PASS and returns to normal the interface is often displayed, indicating that the adjustment is successful.


Package includes:


1 x AC Current Tester

Note:
1. This product is suitable for indoor use and cannot be used outdoors.
2. This product is suitable for AC and cannot test DC.
3. This product is suitable for single-phase power frequency AC power grid, and not suitable for other waveforms.
4. The working voltage and test current cannot exceed the calibration range.

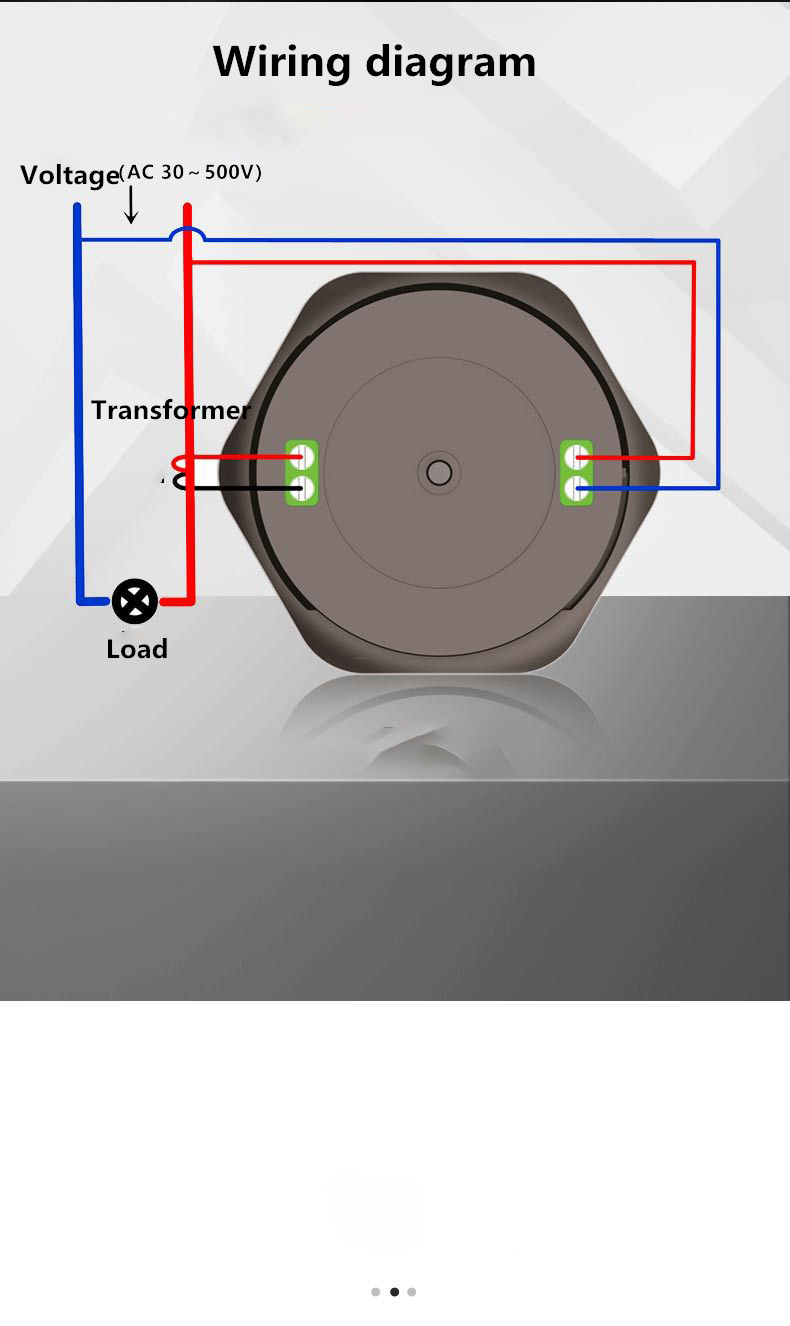

5. Be sure to wire correctly

Details pictures:

PZEM-024A-100A-Circular-LCD-AC-Digital-Ammeter-AC-0100A-AC-Current-Tester-Open-and-Close-Type-Closed-1743438-1

PZEM-024A-100A-Circular-LCD-AC-Digital-Ammeter-AC-0100A-AC-Current-Tester-Open-and-Close-Type-Closed-1743438-2

PZEM-024A-100A-Circular-LCD-AC-Digital-Ammeter-AC-0100A-AC-Current-Tester-Open-and-Close-Type-Closed-1743438-3

PZEM-024A-100A-Circular-LCD-AC-Digital-Ammeter-AC-0100A-AC-Current-Tester-Open-and-Close-Type-Closed-1743438-4

PZEM-024A-100A-Circular-LCD-AC-Digital-Ammeter-AC-0100A-AC-Current-Tester-Open-and-Close-Type-Closed-1743438-5

PZEM-024A-100A-Circular-LCD-AC-Digital-Ammeter-AC-0100A-AC-Current-Tester-Open-and-Close-Type-Closed-1743438-6

PZEM-024A-100A-Circular-LCD-AC-Digital-Ammeter-AC-0100A-AC-Current-Tester-Open-and-Close-Type-Closed-1743438-7

PZEM-024A-100A-Circular-LCD-AC-Digital-Ammeter-AC-0100A-AC-Current-Tester-Open-and-Close-Type-Closed-1743438-8

PZEM-024A-100A-Circular-LCD-AC-Digital-Ammeter-AC-0100A-AC-Current-Tester-Open-and-Close-Type-Closed-1743438-9

PZEM-024A-100A-Circular-LCD-AC-Digital-Ammeter-AC-0100A-AC-Current-Tester-Open-and-Close-Type-Closed-1743438-10

PZEM-024A-100A-Circular-LCD-AC-Digital-Ammeter-AC-0100A-AC-Current-Tester-Open-and-Close-Type-Closed-1743438-11

PZEM-024A-100A-Circular-LCD-AC-Digital-Ammeter-AC-0100A-AC-Current-Tester-Open-and-Close-Type-Closed-1743438-12

PZEM-024A-100A-Circular-LCD-AC-Digital-Ammeter-AC-0100A-AC-Current-Tester-Open-and-Close-Type-Closed-1743438-13

PZEM-024A-100A-Circular-LCD-AC-Digital-Ammeter-AC-0100A-AC-Current-Tester-Open-and-Close-Type-Closed-1743438-14
