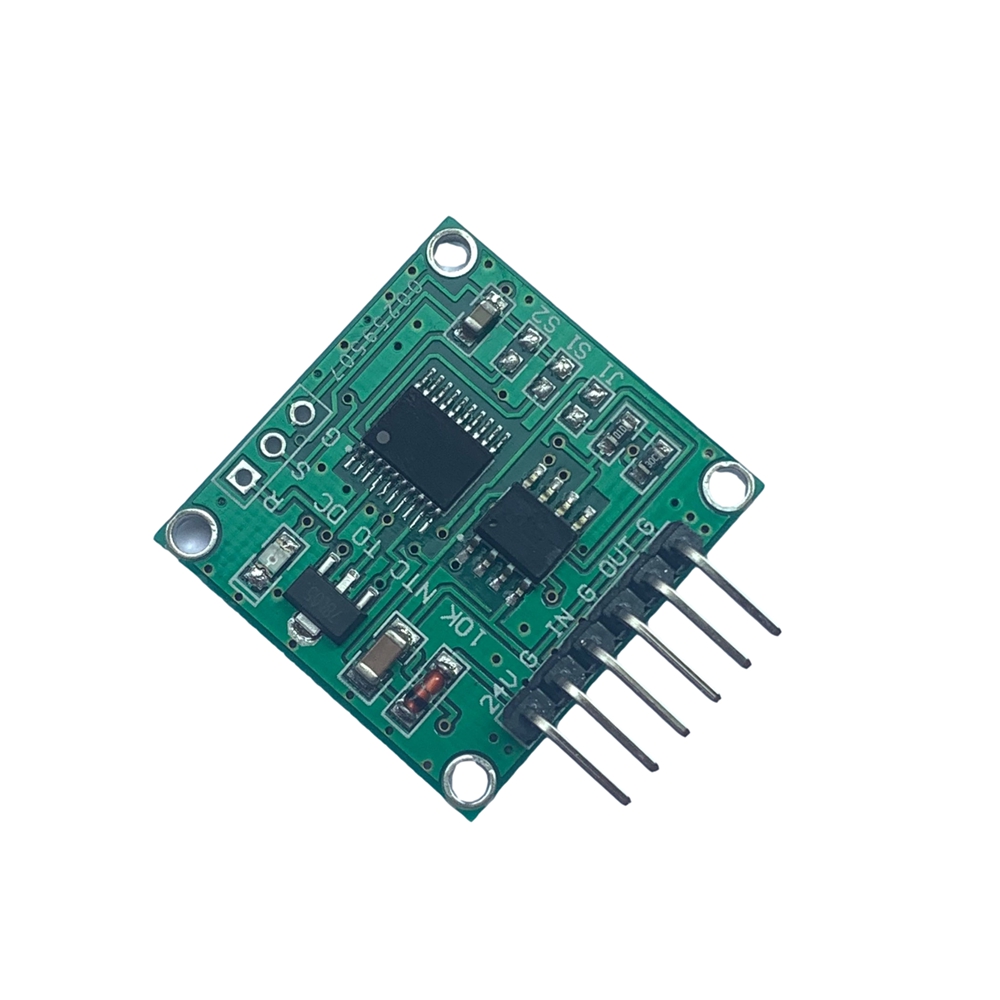

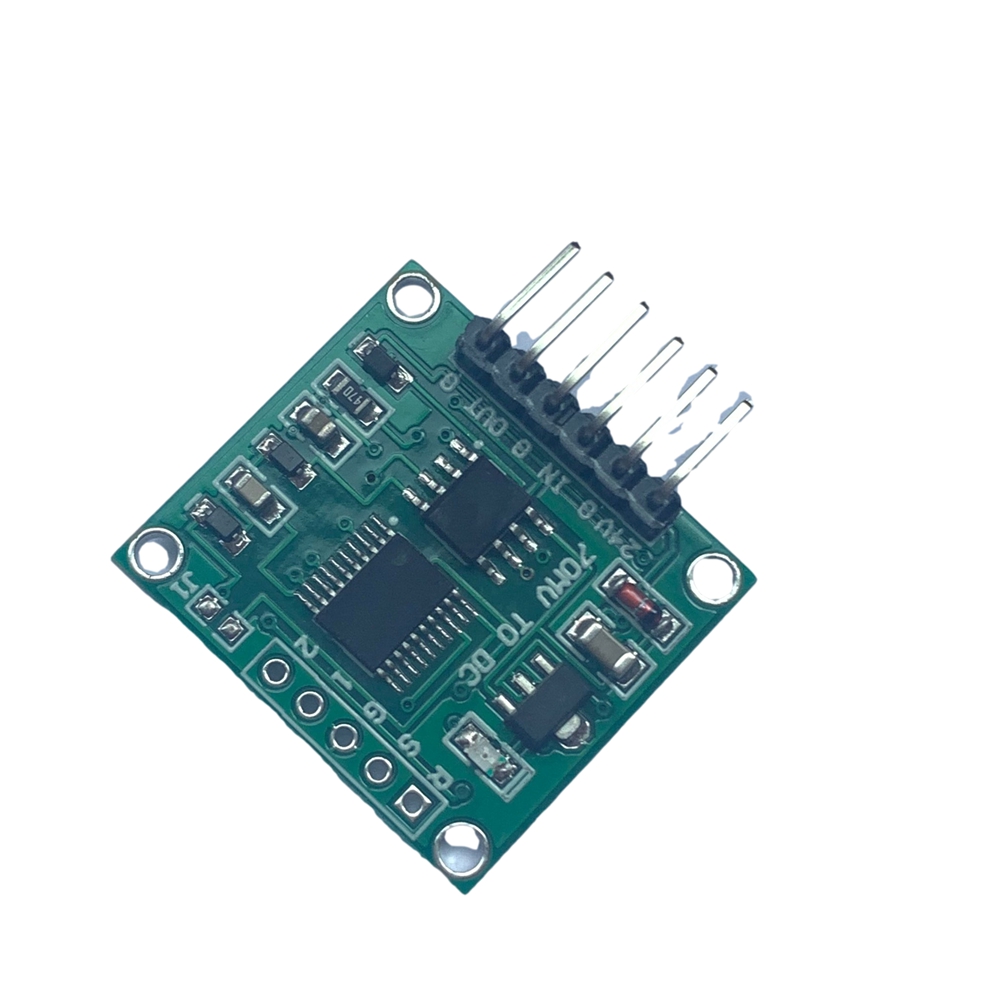

0-5V to 4-20MA Voltage to Current Board Linear Conversion Transmitter Module

0-5V to 4-20MA Voltage to Current Board Linear Conversion Transmitter Module
0-5V to 4-20MA Voltage to Current Board Linear Conversion Transmitter Module
0-5V to 4-20MA Voltage to Current Board Linear Conversion Transmitter Module
0-5V to 4-20MA Voltage to Current Board Linear Conversion Transmitter Module
0-5V to 4-20MA Voltage to Current Board Linear Conversion Transmitter Module
0-5V to 4-20MA Voltage to Current Board Linear Conversion Transmitter Module
0-5V to 4-20MA Voltage to Current Board Linear Conversion Transmitter Module
0-5V to 4-20MA Voltage to Current Board Linear Conversion Transmitter Module
0-5V to 4-20MA Voltage to Current Board Linear Conversion Transmitter Module
0-5V to 4-20MA Voltage to Current Board Linear Conversion Transmitter Module
0-5V to 4-20MA Voltage to Current Board Linear Conversion Transmitter Module
  • Stock: In Stock
  • Model: ST230042884
  • SKU: ST230042884
$14.69
Ex Tax: $14.69
Module parameters:

1. Working voltage: 9V ~ 24V
2. Input voltage: 0.00V ~ 5.00V / 0.00V ~ 10.00V
3. Output current: 4.00MA ~ 20.00MA / 0.00mA~20.00mA
4. Input mode: J1 pad on the circuit board: open circuit (0~5V); short circuit (0~10V) default is open circuit.
5. Output mode: J2 pad on the circuit board: open circuit (output 4.00mA ~ 20.00mA); short circuit (output 0.00mA ~ 20.00mA), the default is open circuit.
6. Control method: input voltage is converted to corresponding current
7. Application range: voltage signal to current signal; remote data acquisition and control equipment;
8. Size: (length) 26mm * (width) 25mm * (height) 7mm

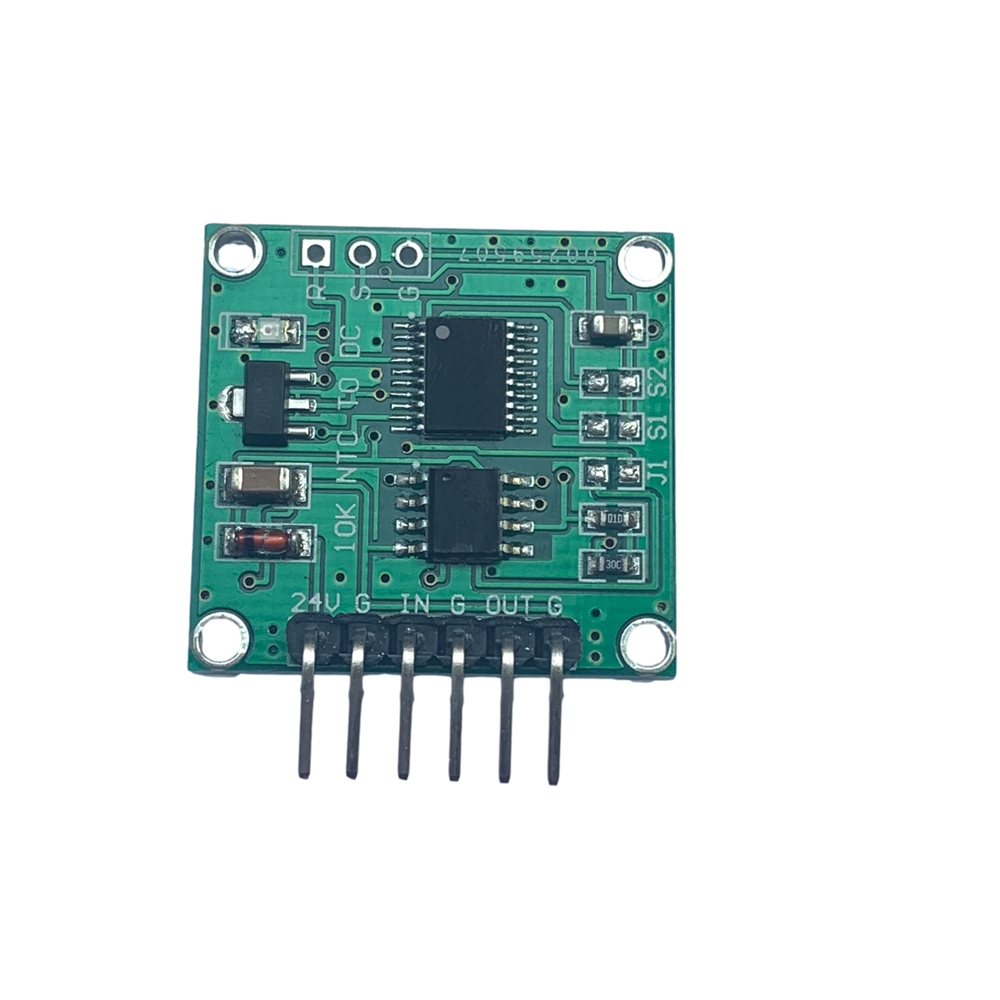

9. Module interface:
24V: Power supply positive port (9V ~ 24V).
G: Power ground interface.
IN: Signal input interface (0.00V ~ 5.00V / 0.00V ~ 10.00V)
G: Power ground interface.
OUT: Signal output interface (4.00MA ~ 20.00MA / 0.00mA~20.00mA)
G: Power ground interface.
Note: When the output is 0.00V ~ 10.00V, the power supply voltage must be 15V.

Package includes:

1 x 0-5V to 4-20MA Voltage to Current Board
