0.01mm 0-25.4mm Elecronic Digital Indicator Depth Gauge Measuring Tool High Precision
- Stock: In Stock
- Model: ST22011685
- SKU: ST22011685
$64.99
Ex Tax: $64.99
Features:
- The moving parts made of special wear mainly stainless steel,with good resistance and anti-rust properties.
- Simple structure,convenient and stable operation.
- Shockproof structure of rack.
- Hardened alloy measuring head.
Specifications:
Product name | Measuring range | Division value | Precision | 3 extensions inside, the depth can be extended to 100mm |
Digital depth indicator (0-25m, 0-100mm are 6 keys) | 0-12.7mm | 0.01mm | ±0.02mm | |
0-25.4mm | 0.01mm | ±0.03mm | ||
0-50.8mm | 0.01mm | ±0.04mm | ||
Digital depth dial indicator | 0-12.7mm | 0.001mm | ±0.003mm | |
0-25.4mm | 0.001mm | ±0.005mm | ||
0-50.8mm | 0.001mm | ±0.006mm |
Package Includes:
- 1 x Digital Depth Indicator (battery 3Vx2 Not included)

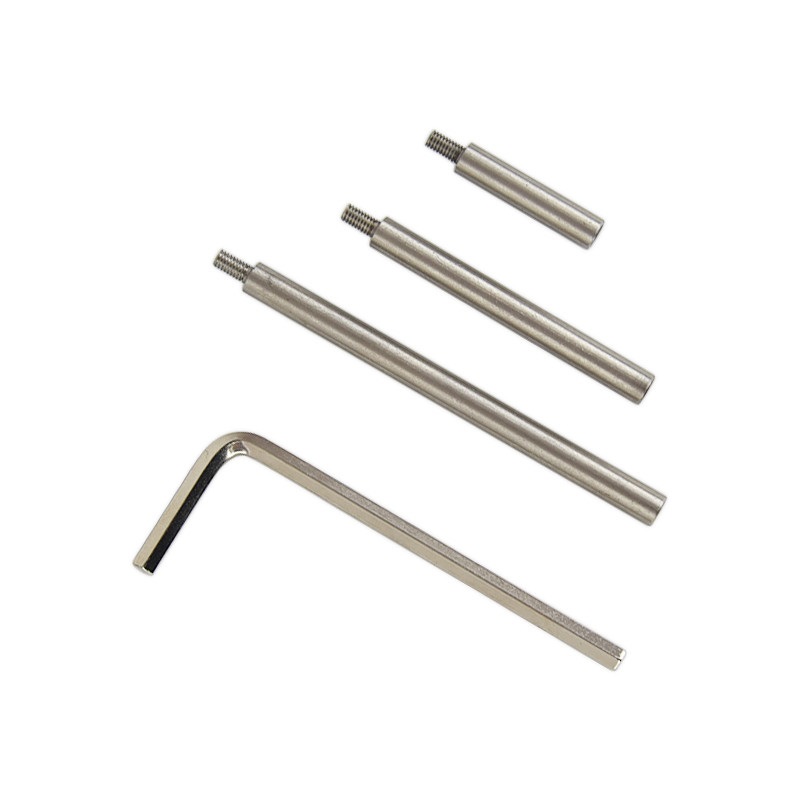

- 3 x Extension Rod
- 1 x Allen Wrench
- 1 x User Manual
- Notes:
- 1. Electronic indicator depth gauge is a precision measuring tool, therefore when using, prevent from shock, drop, to avoid loss of precision.
- 2. Keep it clean, and avoid the penetration of liquid, such as water, which will influence the normal use.
- 3. Do not apply voltage on any part of the gauge, do not engrave letters so as to avoid damage on the electronic circuit.
- 4. If don't use for long time, remove the battery.

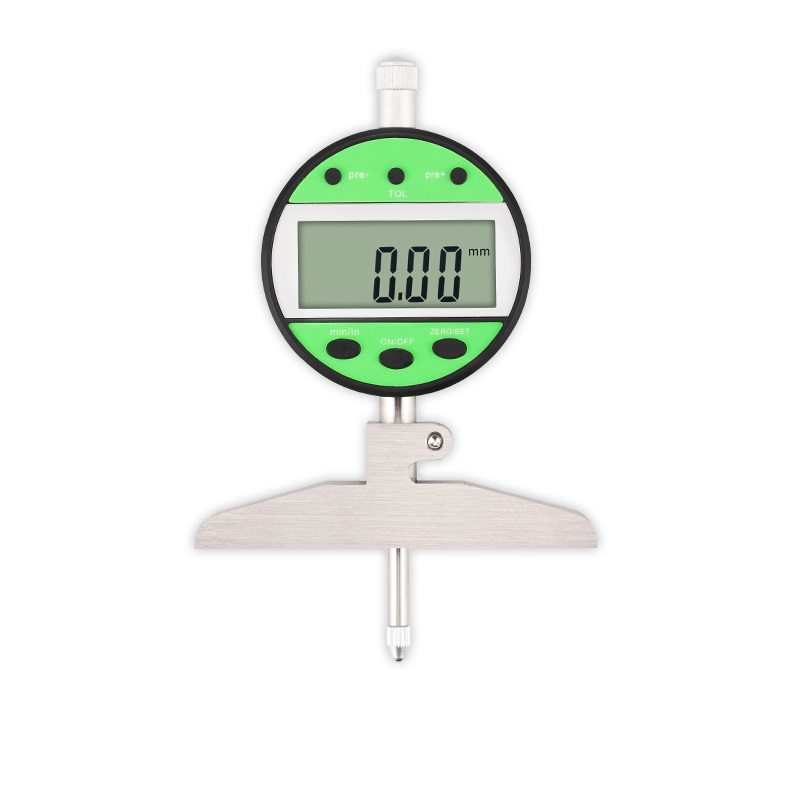

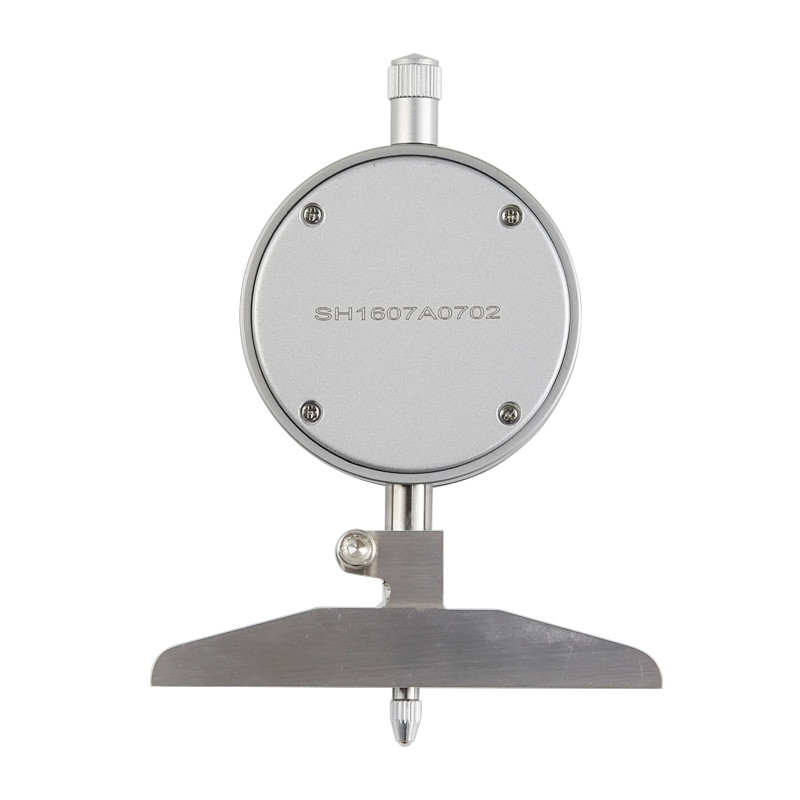

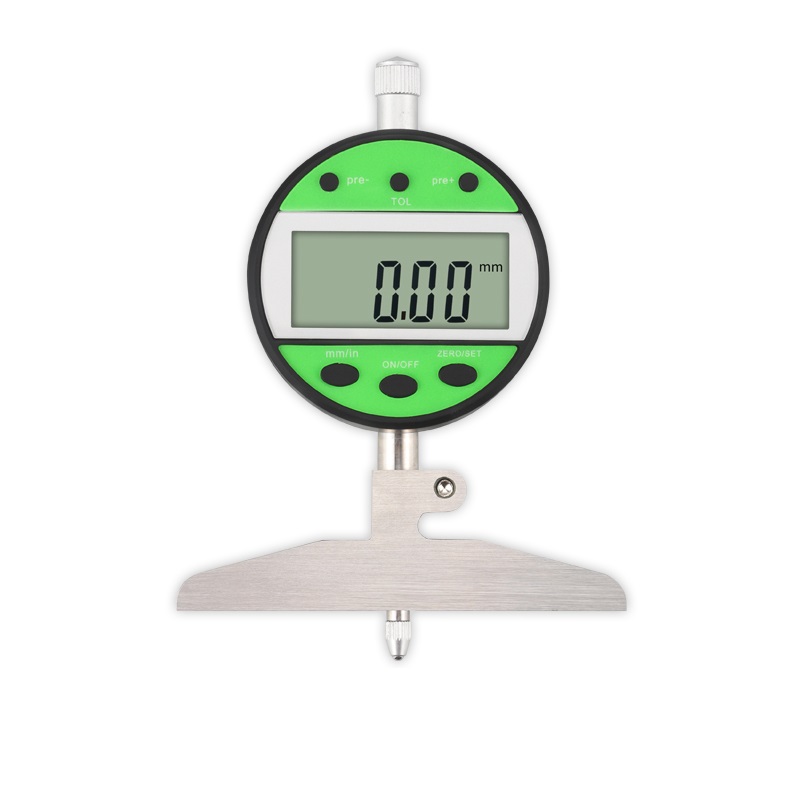

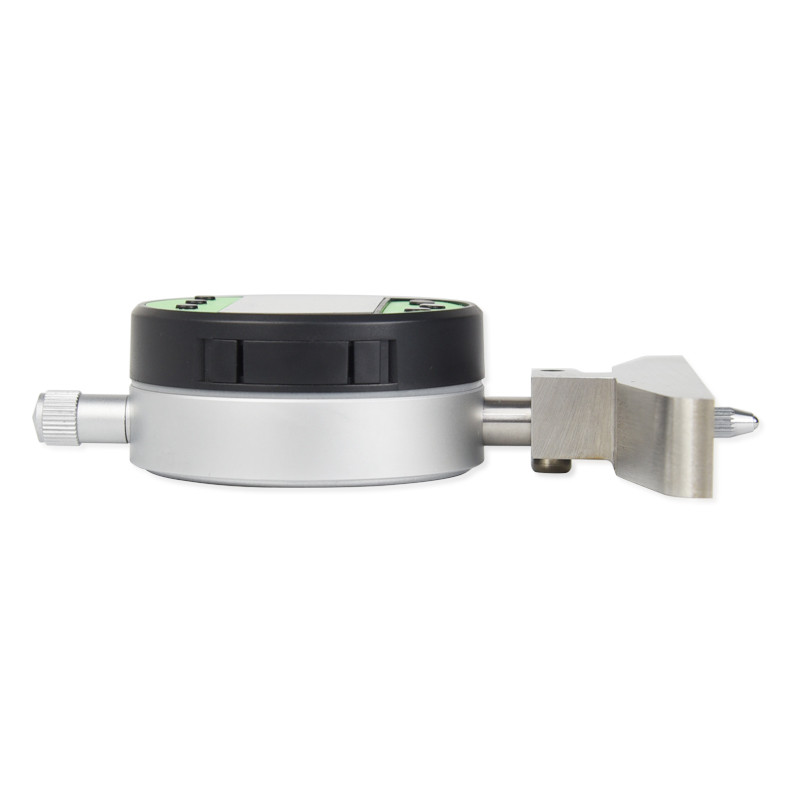

Detail Pictures:
