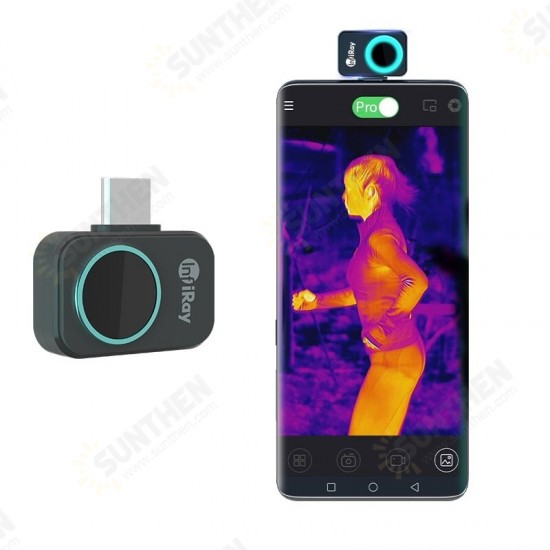

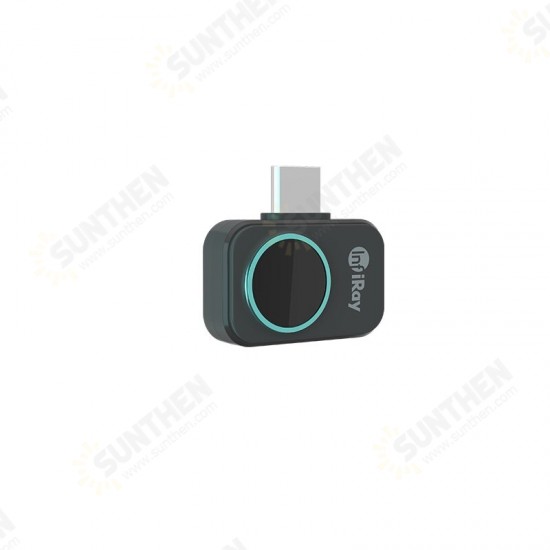

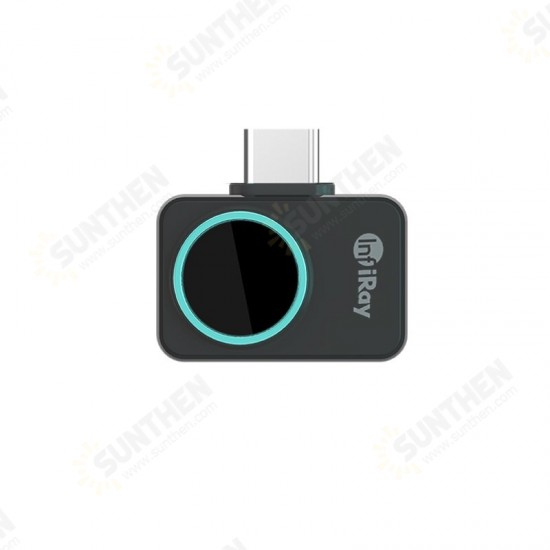

P2 Thermal Imager IR Sensor Resolution 256*192 Mobile Phone Infrared Thermal Imager Camera Thermal Leak Diagnosis Thermal Sensor Thermometer
- Stock: In Stock
- Model: ST22011338
- SKU: ST22011338
$299.99
Ex Tax: $299.99
Specification:
IR Sensor Resolution: 256X192
Pixel Size: 12um
NETD: ≤50mK@25°C,F#1.0
Spectral Band: 8〜14um
Size: 27*18*9.8(mm)
Weight: 9g
Control Interface: USB typeC
Performance
Frame Rate: 25Hz
Operating Temperature: -10℃-55℃
Storage Temperature: -40℃-85℃
Power Consumption: 350mW
Processor: Self-developed ASIC chip
Lens
Focal Length: 3.2mm
Aperture: F1.1
FOV: 56.0°x42.2°
Focusing Mode: Athermalized fixed focus lens
Temperature Measurement
Measuring Range: -20℃-170℃
Measuring Error: ±3℃ (±3% of reading, the greater shall prevail)
Temperature Correction: Emissivity, distance, environmental temperature
Software Function:
Palettes: White/Black hot and 6 color palettes
Temperature Measurement Mode: Point/Line/Area temperature measurement
Information Sharing: Instant picture sharing
Data Analysis: Secondary temperature analyzing and processing of thermal images
Imaging Tool: Android 6.0 and above
Software Update: Online update

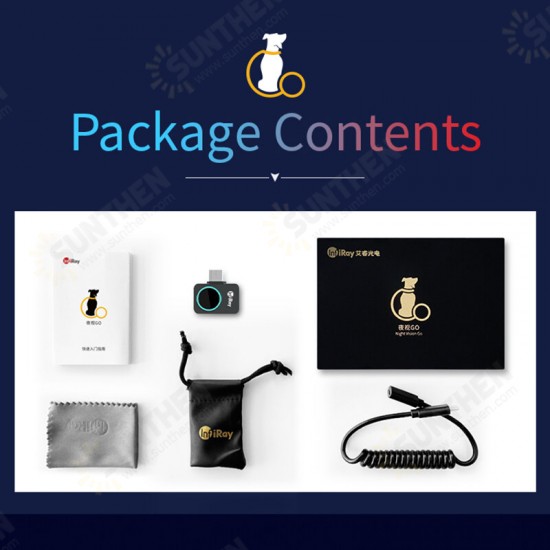

Package Included:
1 x Thermal Imager
1 x Manual
1 x Packing Box
Note: you can search for "Night Vision Go" to download and install, function guidance and practical explanation.
Common Problem:
1.
Q: Why can't the image of OPPO, VIVO, IQOO mobile phone be displayed after connecting?
A: The method is as follows: mobile phone settings option ― search bar ― input OTG ― after finding the option, set it to the on state.
2.
Q: If it is an old mobile phone, how to connect the thermal imager if the interface is Micro?
A: Need to use Type-C female port to Micro male port adapter to use, and must support OTG function.
3.
Q: Can the Apple version and the Android version be compatible?
A: No. These are two completely different systems, and the interface hardware is essentially different, so they cannot be used universally through adapters.
Details Pictures:
